2026 Honda Rebel 1100 DCT SE Suspension & Chassis Breakdown

Suspension & Chassis Breakdown

2026 Honda Rebel 1100 DCT SE at Poway Powersports (San Diego)

2026 Honda Rebel 1100 DCT SE side profile
Chassis confidence, cruiser comfort
A low seat height and wide tires pair with a steel frame for stable, predictable handling.
Base Price
$11,199
Model ID: CMX1100D3
Deep Pearl Gray color swatch
Quick chassis highlights
  • Front suspension: 43mm fork; 5.5-inch travel
  • Rear suspension: Dual Showa® shocks, adjustable preload; 3.7-inch travel
  • Front tire: 130/70-18  |  Rear tire: 180/65-16
  • Brakes: 330mm front disc w/ radial-mount four-piston caliper; 256mm rear disc; ABS
  • Geometry: 28.0° rake; 4.3-inch trail; 59.8-inch wheelbase

How the Rebel 1100 DCT SE is set up to handle

The Rebel 1100 DCT SE blends cruiser attitude with a chassis designed for real-world control. Below is a rider-focused look at the suspension, frame, tires, and braking hardware that shape the bike’s feel around town, on the freeway, and through San Diego’s canyon roads.

Wide fork feature
Front end: 43mm fork

A 43mm fork with 5.5 inches of travel helps the Rebel manage bumps and pavement seams while keeping the steering feel planted. The wide-fork stance also complements the bike’s stable, confident look.

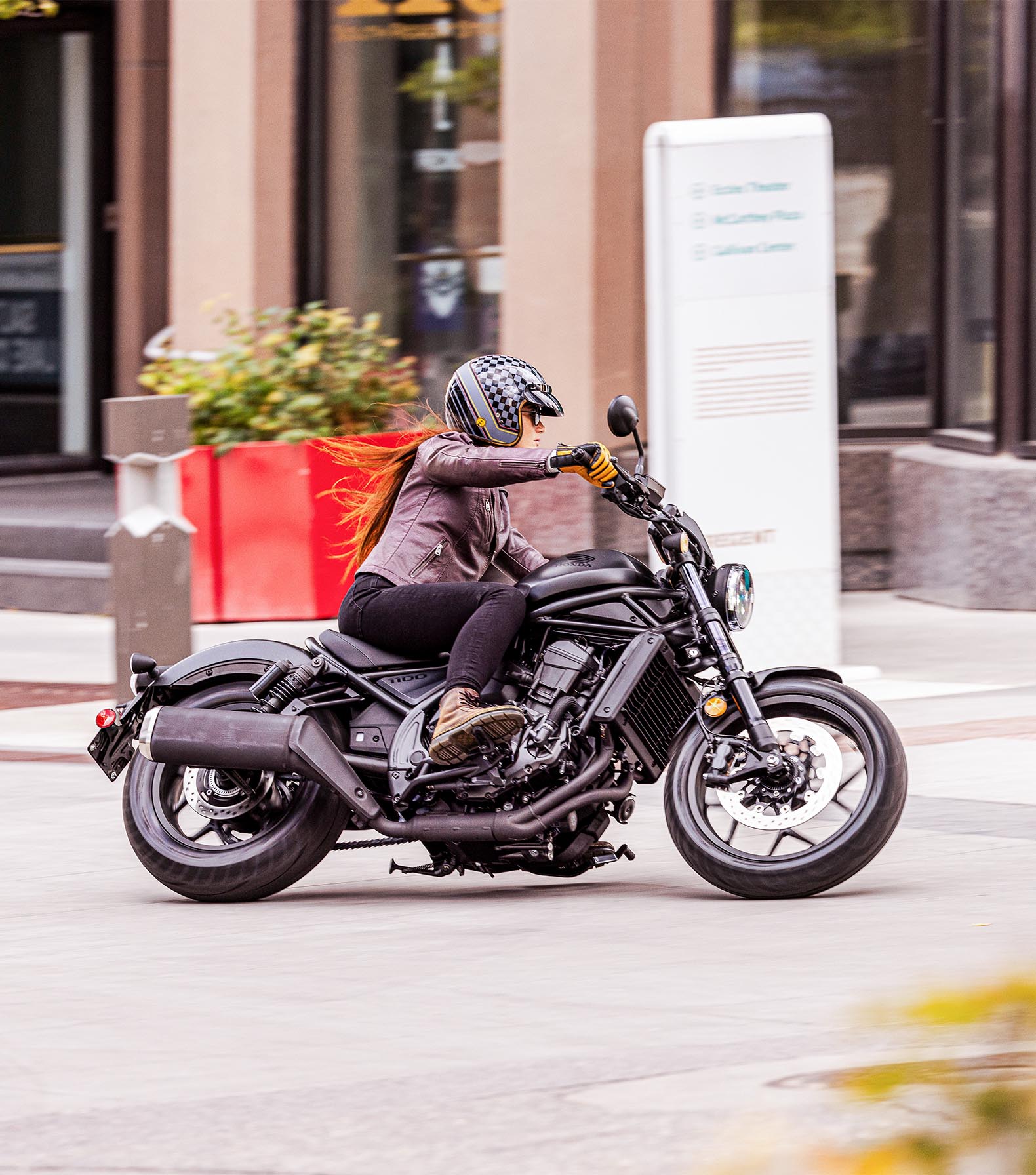

Superior handling feature
Steel frame & balanced geometry

A steel frame, low center of gravity, and measured geometry (28.0° rake and 4.3-inch trail) work together for predictable tracking. The 59.8-inch wheelbase adds stability without making the bike feel unwieldy at everyday speeds.

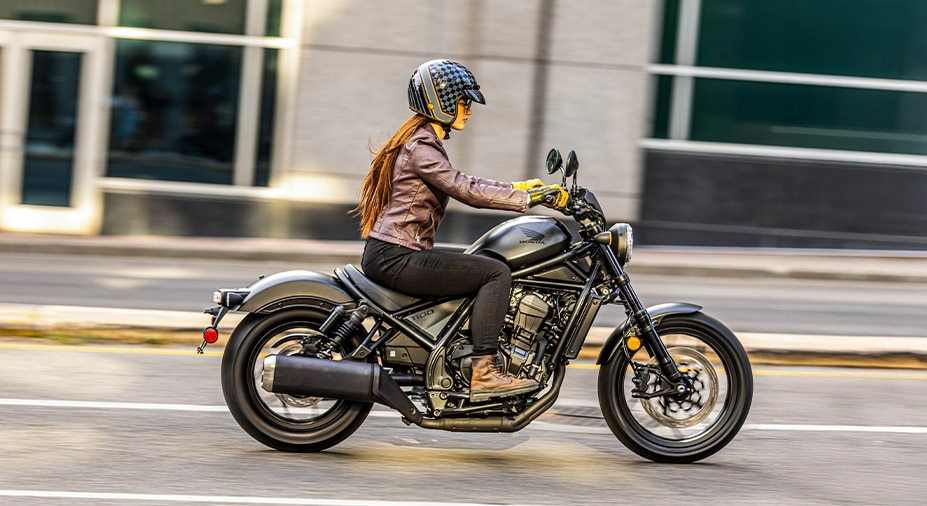

Wide tires feature
Tires: wide contact patches

The Rebel runs a 130/70-18 front and a 180/65-16 rear tire. That wide rear footprint supports strong straight-line composure and a confident feel when you roll on the throttle, while the front size helps maintain steering feedback.

Rear suspension: Dual Showa® shocks with adjustable preload

Out back, dual Showa® shocks provide 3.7 inches of travel and adjustable preload. Preload adjustment is a practical tool: dial it in for your weight, a passenger (with the optional passenger seat and footpeg kit), or added cargo so the bike stays composed and maintains proper ride height.

Seat height: 27.9 inches
Curb weight: 519 lb (with fluids & full tank)
Fuel capacity: 3.6 gallons
2026 Honda Rebel 1100 DCT SE detail view

Braking hardware: strong feel with ABS

Up front, the Rebel uses a single 330mm disc with a radial-mount four-piston caliper, paired with ABS. The rear uses a 256mm disc with ABS. Together, the setup is designed to deliver confident stopping power and added control when traction changes.

Tip for setup
If you’re adding a passenger kit or carrying gear, ask our team about setting rear preload so the bike stays level and responsive.
2026 Honda Rebel 1100 DCT SE three-quarter view

FAQ: Suspension & chassis

Is the rear suspension adjustable?
Yes. The Rebel 1100 DCT SE uses dual Showa® shocks with adjustable preload, which helps tune ride height and feel for different loads.
Does it have ABS?
Yes. ABS is listed for both the front and rear brakes.
What are the tire sizes?
Front: 130/70-18. Rear: 180/65-16.
