Suspension & Chassis Breakdown: 2026 Honda Talon 1000R Live Valve
If you’re shopping for a sport UTV that stays composed at speed, the chassis layout, suspension travel, tires, and braking hardware matter as much as horsepower. Below is a practical, spec-based look at what supports the Talon 1000R Live Valve on rough trails, whoops, and hardpack.
Suspension: Travel, Geometry, and What It Means on the Trail
Front Suspension
The Talon 1000R Live Valve uses an independent double-wishbone front suspension with FOX Live Valve shocks and 17.6-inch travel. Independent geometry helps keep the front end tracking when one wheel hits a rock or rut, while long travel gives the suspension room to absorb repeated impacts without feeling harsh.
Rear Suspension
Out back, the Talon 1000R Live Valve runs a 4+ link trailing arm setup with FOX Live Valve shocks and a big 20.1-inch travel. The extra rear travel is a major contributor to stability in whoops and under acceleration—helping the rear end stay planted instead of skipping.
Why travel numbers matter
Suspension travel is the available movement for the wheels to follow terrain. More travel generally means more ability to absorb bumps at speed and maintain tire contact. Pair that with independent front suspension and a multi-link trailing arm rear, and you get a platform designed to stay predictable when the trail gets choppy.
Chassis Dimensions, Clearance, and Handling Feel
The Talon 1000R Live Valve’s footprint is built around a 90.0-inch wheelbase and 68.1-inch width. A longer wheelbase can help calm the chassis at speed, while width contributes to cornering confidence. Add 13.2 inches of ground clearance and you have room to clear ruts and rocks without constantly dragging the underside.
Tires, Wheels, and Brakes: The Contact Patch and Control

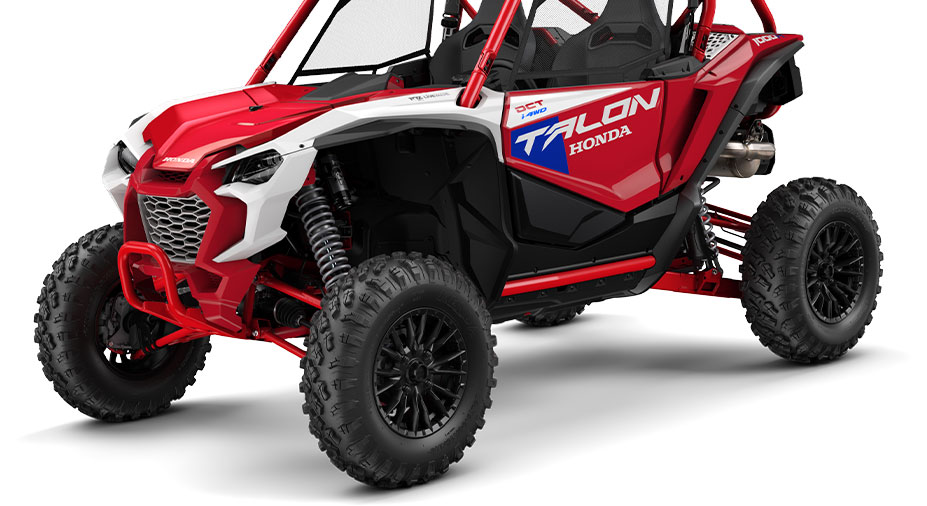

30-inch Tires
The Talon 1000R Live Valve comes with 30 x 9-15 front and 30 x 10-15 rear tires. Larger tires can help with obstacle rollover and ground clearance, while the wider rear size supports traction under power.
Rear: 30 x 10-15
Braking Hardware
Stopping power is handled by dual 250mm discs up front and dual 250mm discs in the rear. Consistent braking feel is a big part of confidence when you’re carrying speed into corners or descending loose terrain.
Rear: Dual 250mm discs
