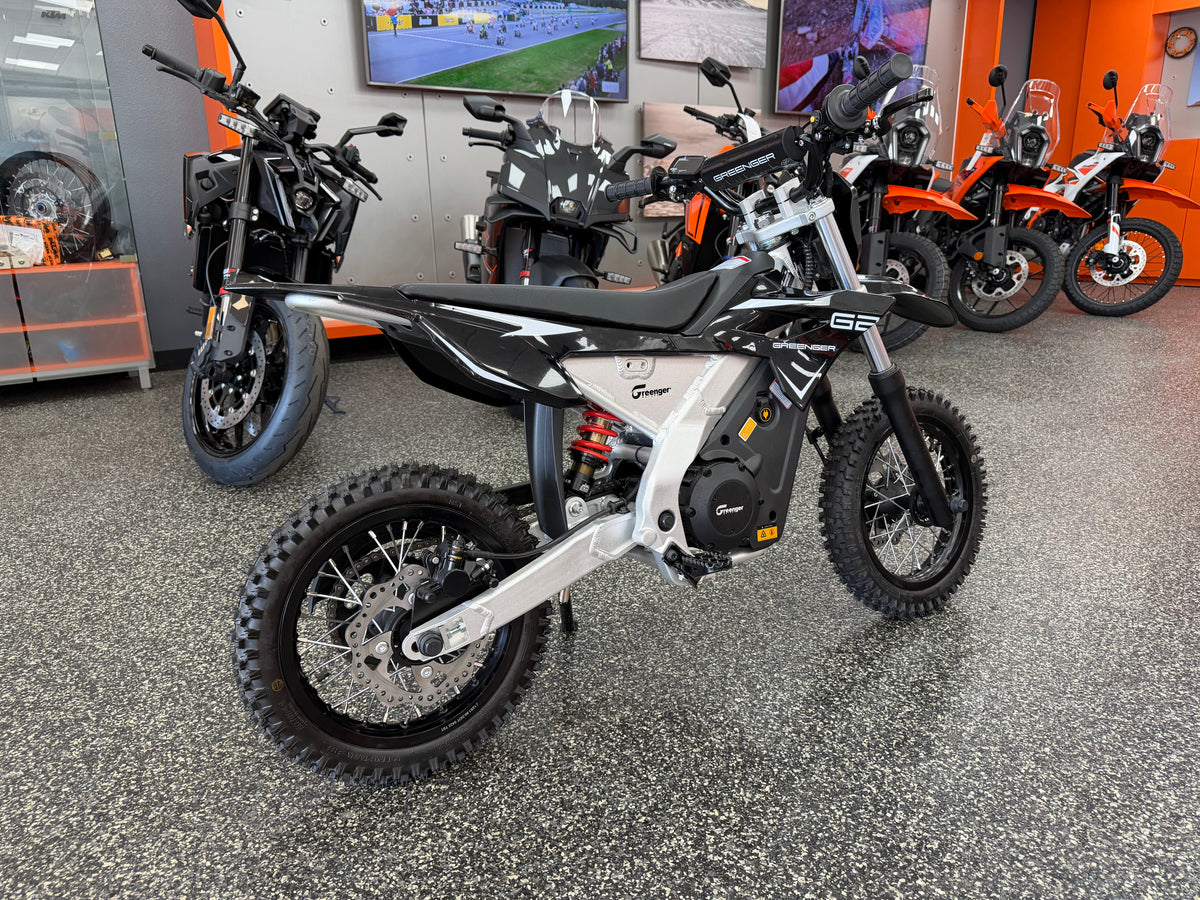

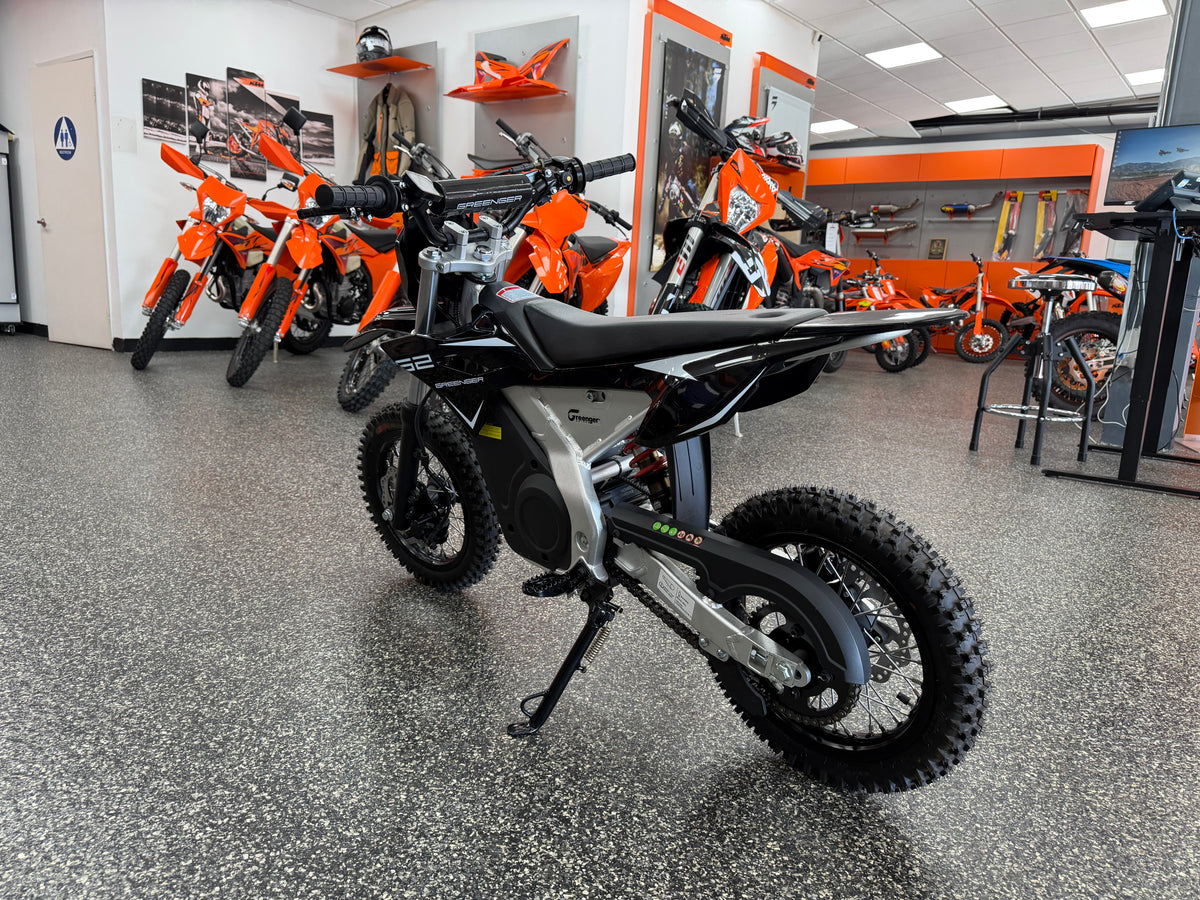

2026 Atlis G2

Chassis sizing, fit, and key dimensions

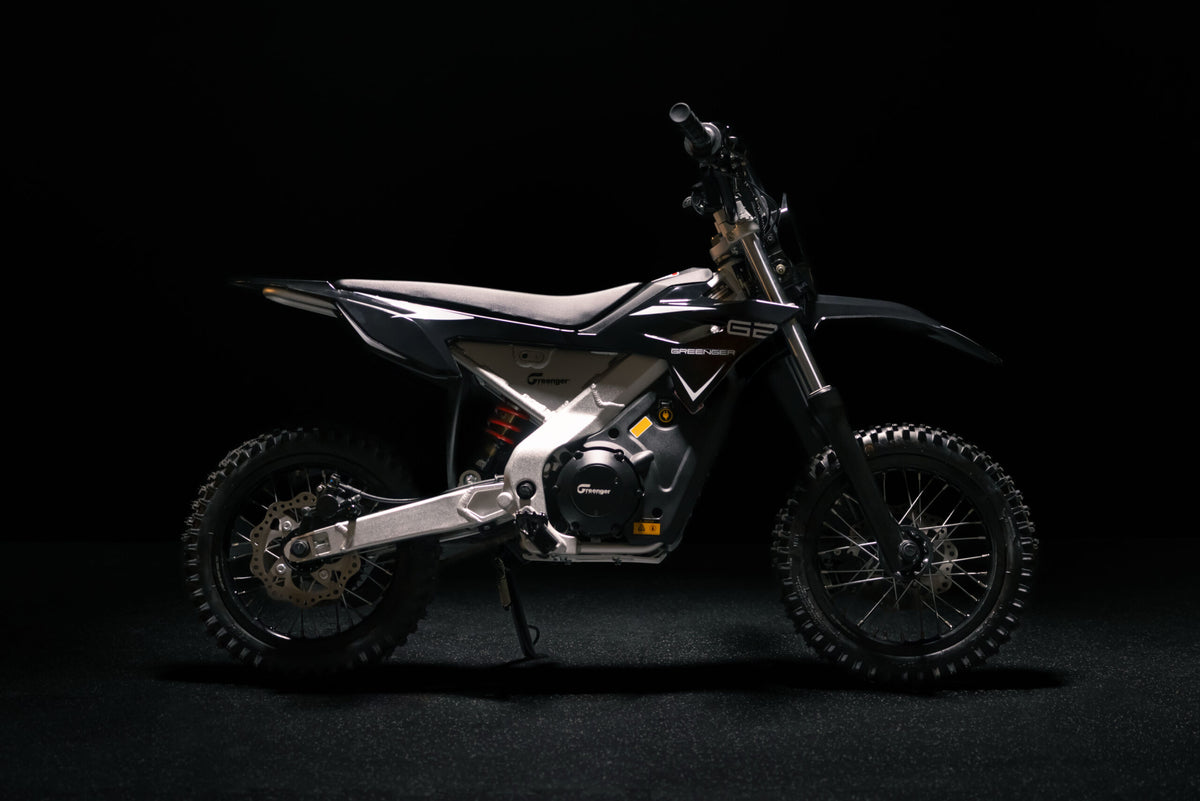

Built around an aluminum twin-spar frame with a double-cradle design, the G2 keeps a compact footprint while using full-feature motorcycle-style hardware. Overall length is 1395 mm (55 inches), width is 690 mm (27.1 inches), and overall height is 920 mm (36.2 inches), with a 970 mm (38 inches) wheelbase. Ground clearance is listed at 200 mm (7.8 inches).

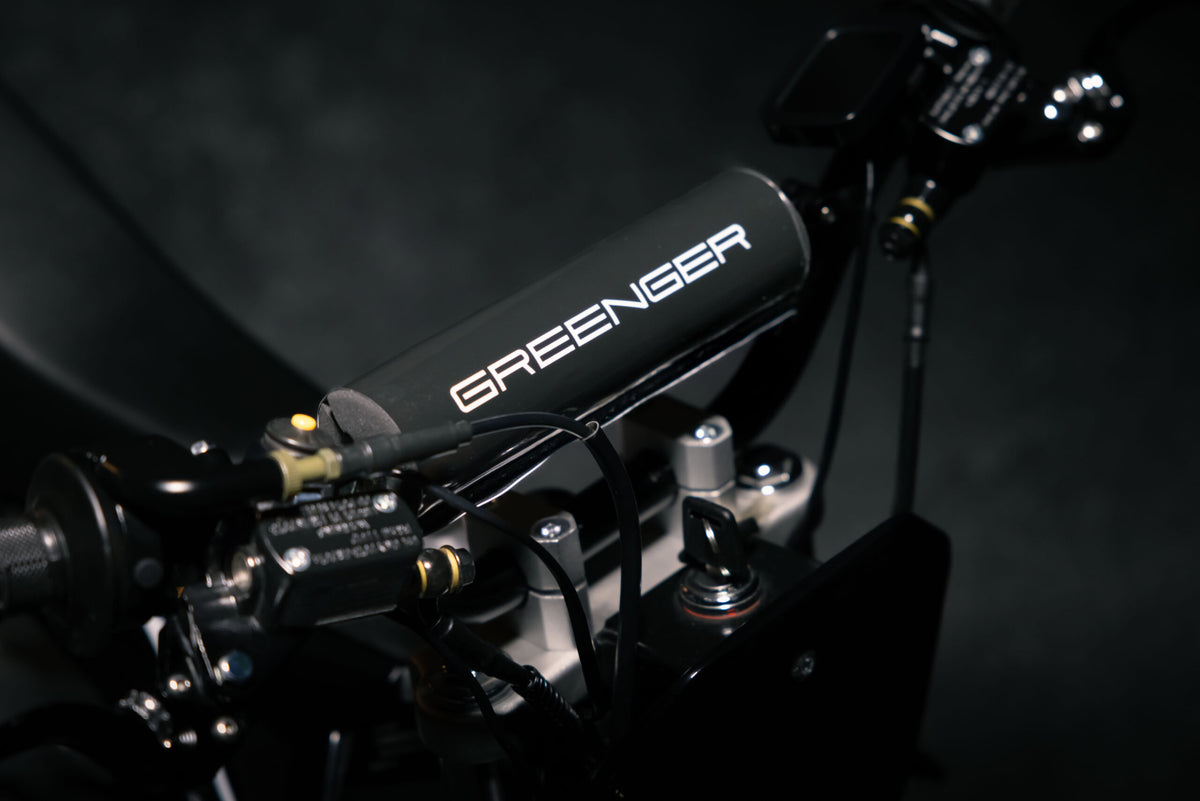

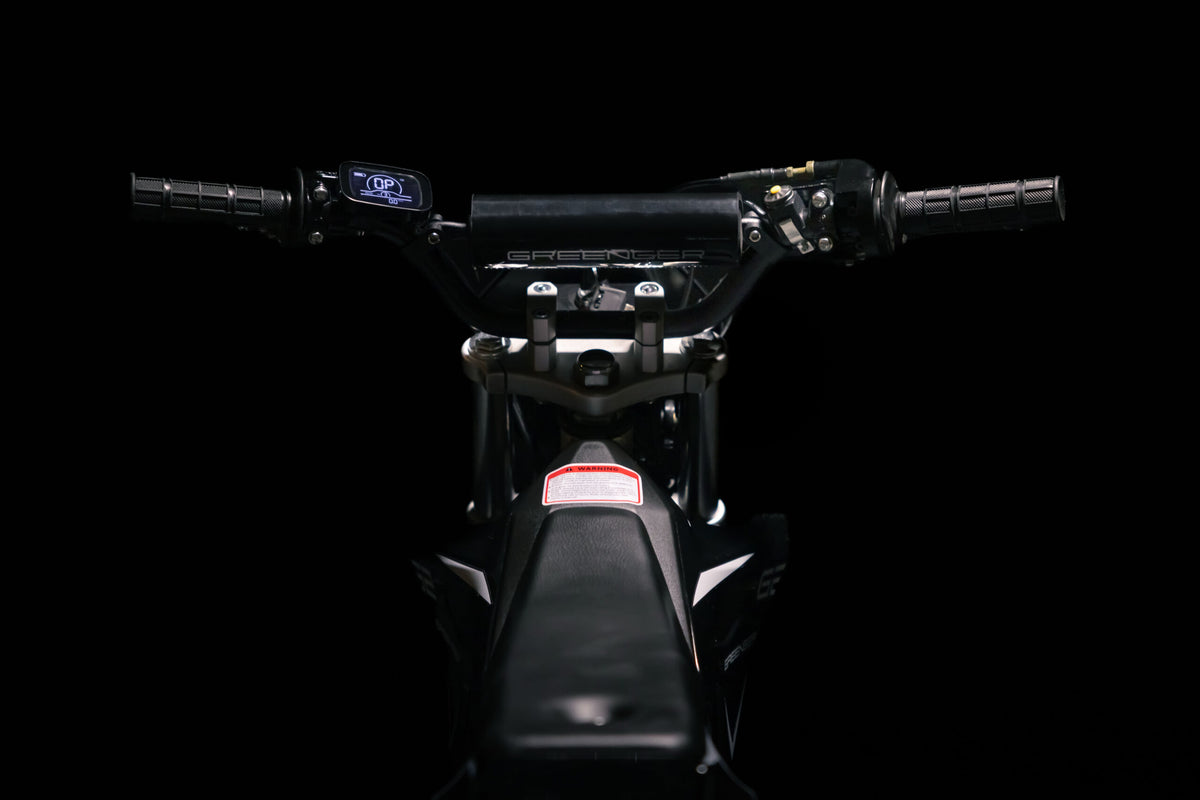

Rider fit can be tuned with an adjustable seat height of 630 mm (24.8 inches) or 650 mm (25.5 inches), and handlebar height is 860 mm (33.8 inches). The handlebar is a tapered aluminum ϕ22 mm unit. The G2’s weight is listed at 48 kg (106 lb), and maximum load is 45 kg (99 lb).

Suspension and steering setup

Up front, the G2 uses a hydraulic conventional telescopic fork (ϕ33 mm) with a 600 mm (24.25 inches) length. Rear suspension is a DNM unit with rebound and preload adjustability, with a listed length of 230 mm (9 inches). Suspension travel is 100 mm (3.9 inches) front and 97 mm (3.8 inches) rear, providing meaningful movement for uneven surfaces while keeping the bike’s proportions manageable.

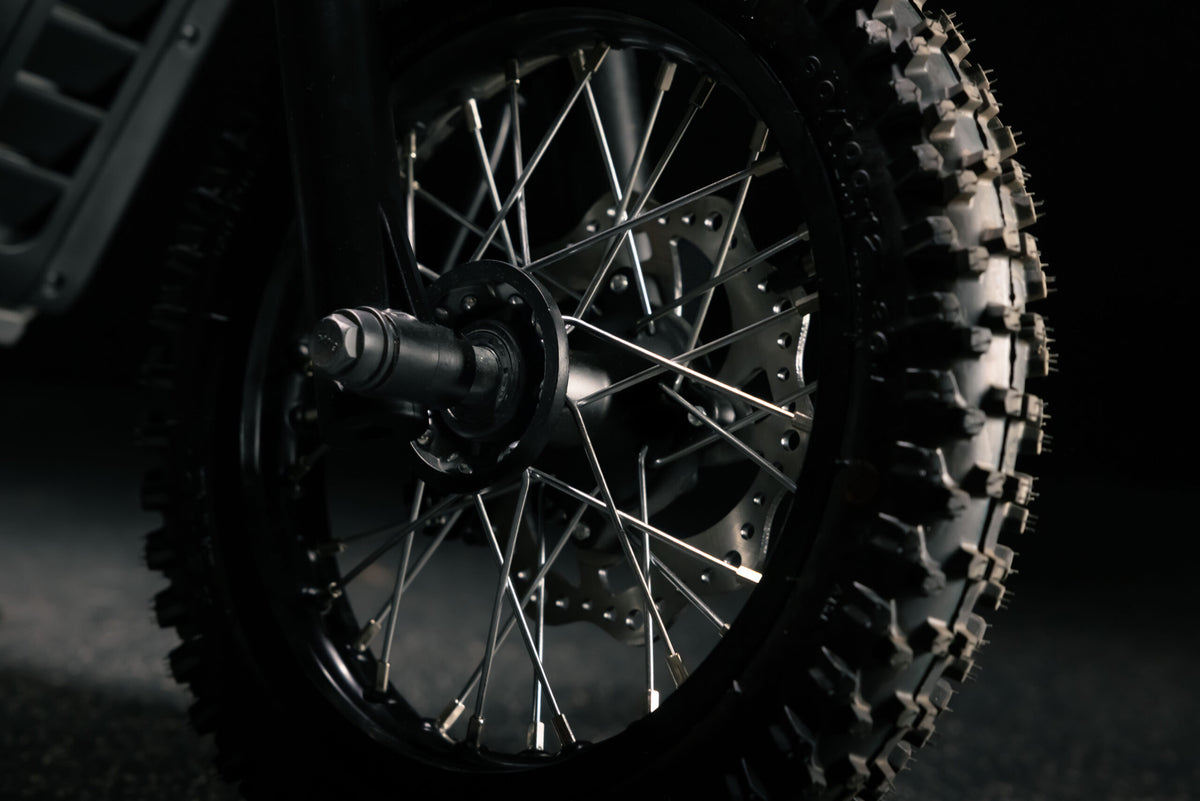

Steering geometry is listed with a 25° steering head angle, 32 mm trail, and a triple clamp offset of 25°. Combined with the 12-inch wheel setup and knobby tires, the G2 is configured for predictable handling in a small-bike package.

Battery, charging, and runtime details

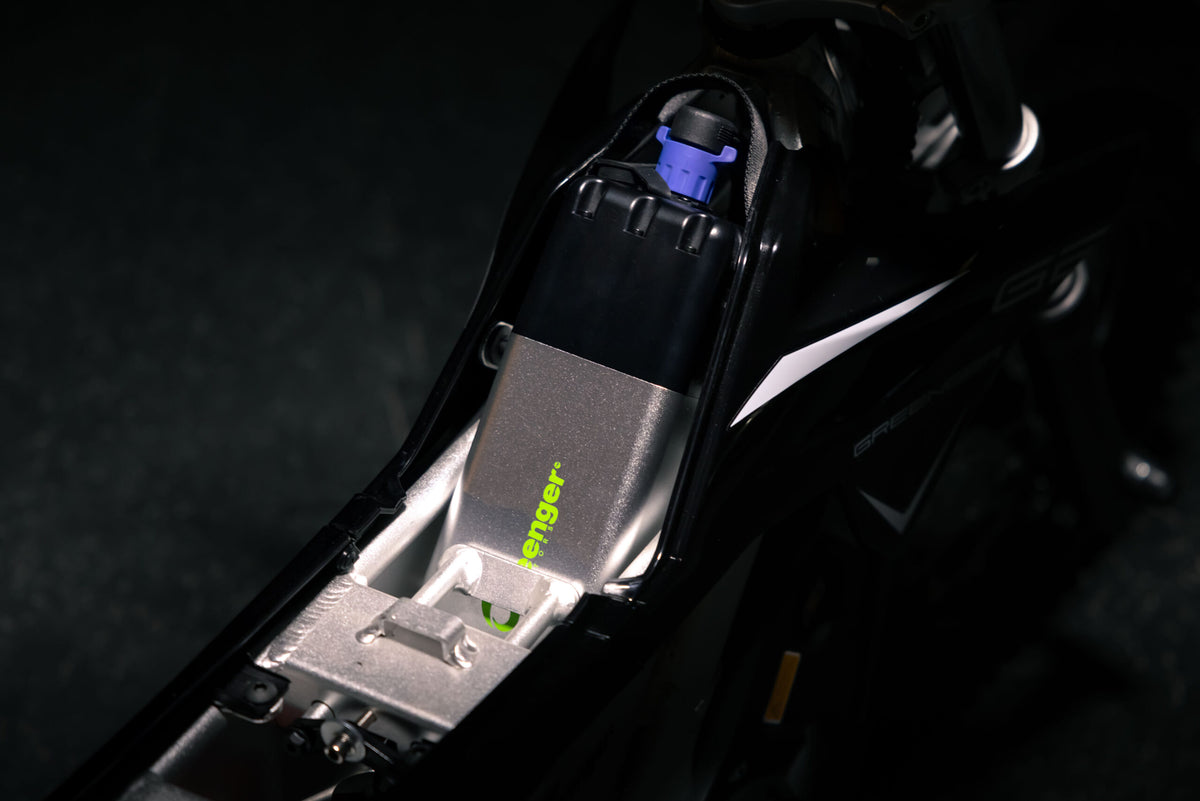

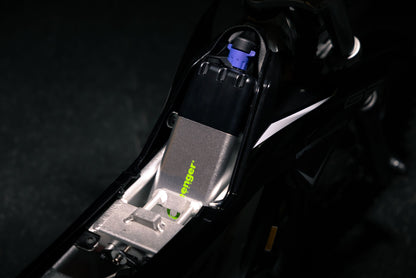

The G2’s swappable lithium-ion powerpack is specified at 20Ah/960Wh, with dimensions of 145*91*270 mm and a listed weight of 5.9 kg (13 lb). For charging support, charger line voltage is listed at 90–264 V / 50–60 Hz. Charging input is specified as 1.3A@230V(AC), with charging power listed at 290 W.

Charging time is listed at 80% in 3.2 hours (Standard) or 2 hours (Quick Charge), and to 100% in 4 hours (Standard) or 2.5 hours (Quick Charge). Run time is stated as 2 hours in ideal conditions with a full charge.

Power delivery and drivetrain components

The electric motor is specified as a 48 V BLDC motor with an inner rotor, and the system includes two drive modes: Stage 1 and Stage 2. Rated output is listed as 1 kW / 2000RPM, with max power listed at 2.5 kW and max motor speed at 4,000 RPM. Torque is provided as Rate: 5.5Nm; Max: 25Nm.

Power is delivered through a 428H chain and a 1:7.1 final drive ratio. The cooling system is listed as air cooled, keeping the powertrain layout simple and easy to live with.

Warranty coverage

Warranty coverage is listed as a 2-Year warranty for the battery. Parts and labor are covered by a 1-Year limited warranty against manufacturer’s defects, covering non-wearable items. Warranty claims are handled through your local dealer.
