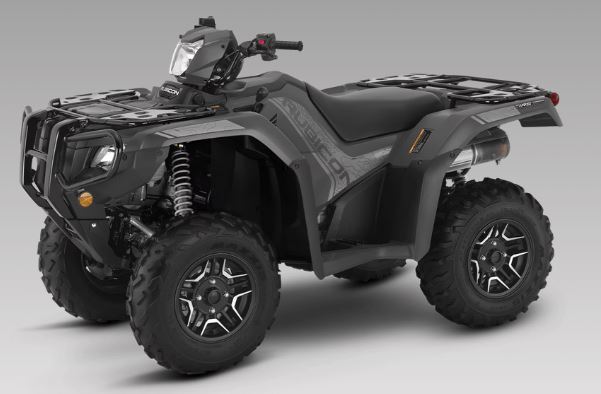

FOREMAN RUBICON 4x4 DCT EPS DLX

Regular price $10,949.00
Regular price Sale price $10,949.00
Sale Sold out
Plus Destination: $620

NO DEALER SETUP or ADM FEES

Skip to product information
1 of 1
💬 HASSLE FREE SHOPPING
☑️ GET APPROVED
🔁 REQUEST DEMO
💲 MAKE AN OFFER
View full details

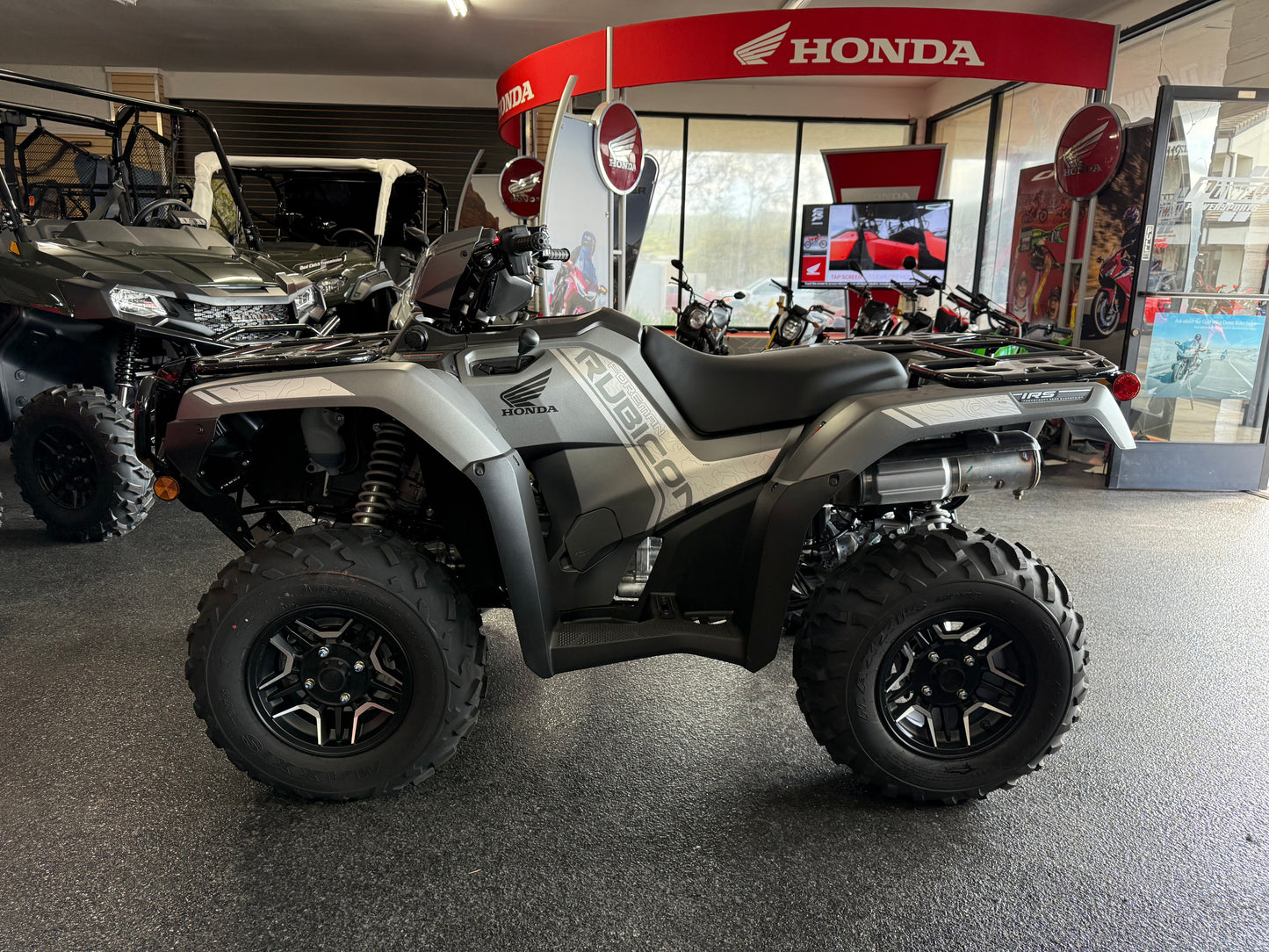

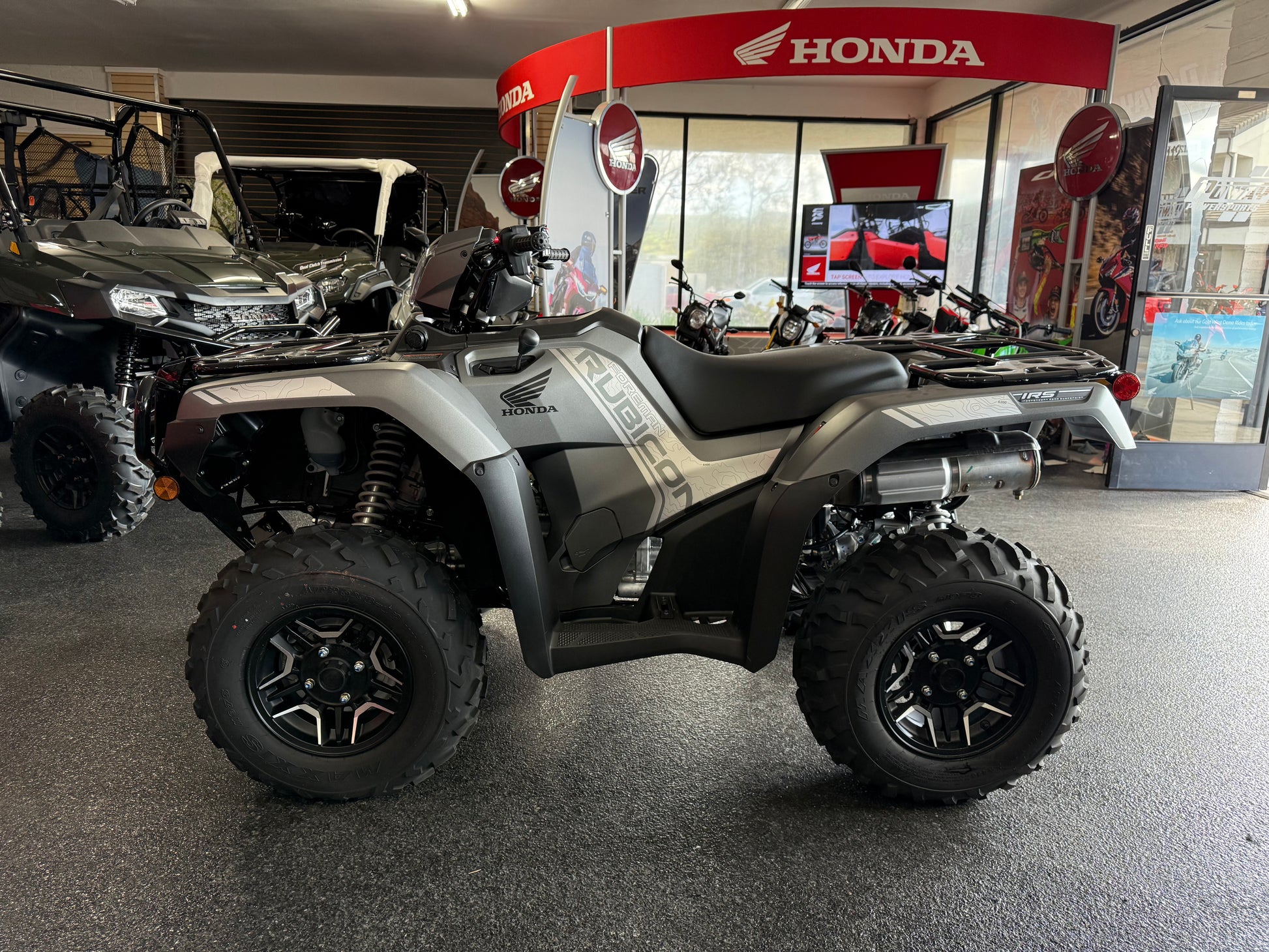

Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe – Built for Real Work and Real Terrain

When the terrain gets unpredictable and the workload doesn’t stop, the Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe steps in as the machine designed to handle both without hesitation. Built around a rugged 518cc liquid-cooled single-cylinder engine and Honda’s proven Dual-Clutch Transmission, the Rubicon delivers smooth, uninterrupted power whether you’re navigating steep backcountry trails, hauling heavy loads, or working long days in demanding conditions.

Unlike traditional belt-driven automatics, the five-speed Dual-Clutch Transmission uses a geared system for direct power delivery, durability, and consistent performance under load. Paired with direct front and rear driveshafts and a torque-sensitive locking front differential, the Rubicon maintains traction in mud, sand, snow, and rock while staying responsive and controlled. This drivetrain is engineered for riders who demand reliability when traction is limited and torque matters most.

Independent suspension at all four corners gives the Foreman Rubicon its composed ride and confident handling. With double-wishbone front suspension and dual-arm rear suspension providing up to 8.5 inches of travel, the chassis absorbs rough terrain while keeping the machine planted. Electric Power Steering further reduces rider fatigue, especially during slow technical riding, heavy towing, or long trail days.

Utility is where the Rubicon truly separates itself. With over 1,300 pounds of towing capacity, nearly 300 pounds of combined rack capacity, and a curb weight engineered for stability, this machine is built to move equipment, supplies, and gear with authority. From property maintenance and ranch work to trail exploration and backcountry recovery, the FourTrax Foreman Rubicon is engineered to be a dependable partner wherever the job—or the trail—leads.

Collapsible content

UNIT SPECS

Engine & Drivetrain

  • Engine Type: 518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
  • Bore x Stroke: 96.0 mm x 71.5 mm
  • Compression Ratio: 9.5:1
  • Valve Train: OHV; two valves per cylinder
  • Induction: Programmed Fuel Injection (PGM-FI), 36 mm throttle body
  • Starter: Electric with optional auxiliary recoil
  • Clutch: Automatic
  • Transmission: Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
  • Driveline: Direct front and rear driveshafts with torque-sensitive locking front differential

Chassis, Suspension & Brakes

  • Front Suspension: Independent double-wishbone; 7.3-inch travel
  • Rear Suspension: Independent dual-arm; 8.5-inch travel
  • Front Brakes: Dual 190 mm discs
  • Rear Brake: 170 mm disc
  • Front Tires: 25 x 8-12
  • Rear Tires: 25 x 10-12

Dimensions & Capacities

  • Length: 86.0 in
  • Width: 47.4 in
  • Height: 48.7 in
  • Wheelbase: 50.9 in
  • Seat Height: 36.3 in
  • Ground Clearance: 9.7 in
  • Turning Radius: 11.5 ft
  • Curb Weight: 719 lb
  • Fuel Capacity: 3.9 gal (including 1.3-gal reserve)
  • Towing Capacity: 1,322 lb
  • Front Rack Capacity: 99 lb
  • Rear Rack Capacity: 187 lb

Additional Information

  • Model ID: TRX520FA7
  • Emissions: Meets current EPA off-road emissions standards
  • Available Color: Matte Gray Metallic
  • Warranty: Transferable one-year limited warranty
  • Extended Coverage: HondaCare® Protection Plan available
  • Rider Information: Recommended for riders 16 years of age and older

FEATURES

Honda FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe – Key Features

518cc Liquid-Cooled Single-Cylinder Engine: A longitudinally mounted four-stroke engine designed for strong low-end torque, smooth power delivery, and long-term durability across work and trail environments.

Five-Speed Automatic Dual-Clutch Transmission (DCT): A geared automatic system that delivers direct power transfer, consistent performance under load, and smoother operation than belt-driven designs, with built-in reverse.

Direct Driveshaft Driveline: Front and rear driveshafts transmit power efficiently while improving reliability, throttle response, and overall drivetrain longevity.

Torque-Sensitive Locking Front Differential: Automatically transfers power to the wheels with traction, improving control in mud, loose dirt, snow, and uneven terrain.

Independent Front and Rear Suspension: Double-wishbone front suspension and dual-arm rear suspension deliver up to 8.5 inches of travel for improved comfort, traction, and terrain absorption.

Electric Power Steering (EPS): Reduces steering effort at low speeds and in rough terrain, minimizing rider fatigue while improving control during technical riding and heavy hauling.

High-Capacity Towing and Cargo Capability: Rated to tow up to 1,322 pounds with 99 pounds of front rack capacity and 187 pounds on the rear rack for serious utility performance.

Four-Wheel Disc Braking System: Dual front 190mm discs and a 170mm rear disc provide confident, controlled stopping power in varied riding conditions.

Rubicon Chassis Geometry: A stable 50.9-inch wheelbase, nearly 10 inches of ground clearance, and balanced weight distribution enhance control on climbs, descents, and uneven ground.

Honda Build Quality and Warranty Support: Backed by a transferable one-year limited warranty, with optional extended coverage available through the HondaCare® Protection Plan.
