2025 HONDA Pioneer 700 Performance Guide

A practical, spec-backed look at how the Pioneer 700 is built to work, haul, and handle real trails—without giving up everyday drivability.

2025 Honda Pioneer 700 in Hero Red
Base price
$12,499
  • Engine: 675cc liquid-cooled single-cylinder four-stroke
  • Transmission: automotive-style automatic w/ hydraulic torque converter
  • Drive: direct front & rear driveshafts
  • Towing: 1,500 lb capacity
  • Bed: 1,000 lb capacity
Price shown is the base price used on this page. Taxes, registration, and dealer-installed options may vary.

Power delivery: 675cc single-cylinder built for usable torque

The Pioneer 700 uses a 675cc liquid-cooled single-cylinder four-stroke engine with PGM-FI fuel injection (40mm throttle body). In real-world riding, that combination is about consistent throttle response—especially when you’re crawling, loading the bed, or pulling a trailer.

Bore x Stroke
102.0mm x 82.6mm
Compression
9.2:1

Valve train is OHV with four valves per cylinder, and the clutch is automatic—helpful for riders who want capability without constant shifting.

Pioneer 700 rugged 675cc liquid-cooled engine

Transmission & control: automatic with torque converter

The Pioneer 700 features an automotive-style automatic transmission with a hydraulic torque converter. That matters when you’re doing stop-and-go work, easing into a load, or navigating uneven terrain where smooth engagement helps maintain traction.

For more driver input, the Pioneer 700 also includes AT/MT mode and paddle shifters, giving you the option to manage gear selection when you want more control on descents, climbs, or when towing.

Pioneer 700 automatic transmission

Work-ready capability: towing, bed capacity, and turning radius

If your “performance” includes hauling and maneuvering, the Pioneer 700 is built with strong utility numbers:

Towing Capacity
1,500 lb
Bed Capacity
1,000 lb
Turning Radius
14.8 ft
Ground Clearance
10.8 in

Need a deeper dive into ride feel and geometry? See the Suspension & Chassis Breakdown.

Handling & braking: suspension travel and disc brakes

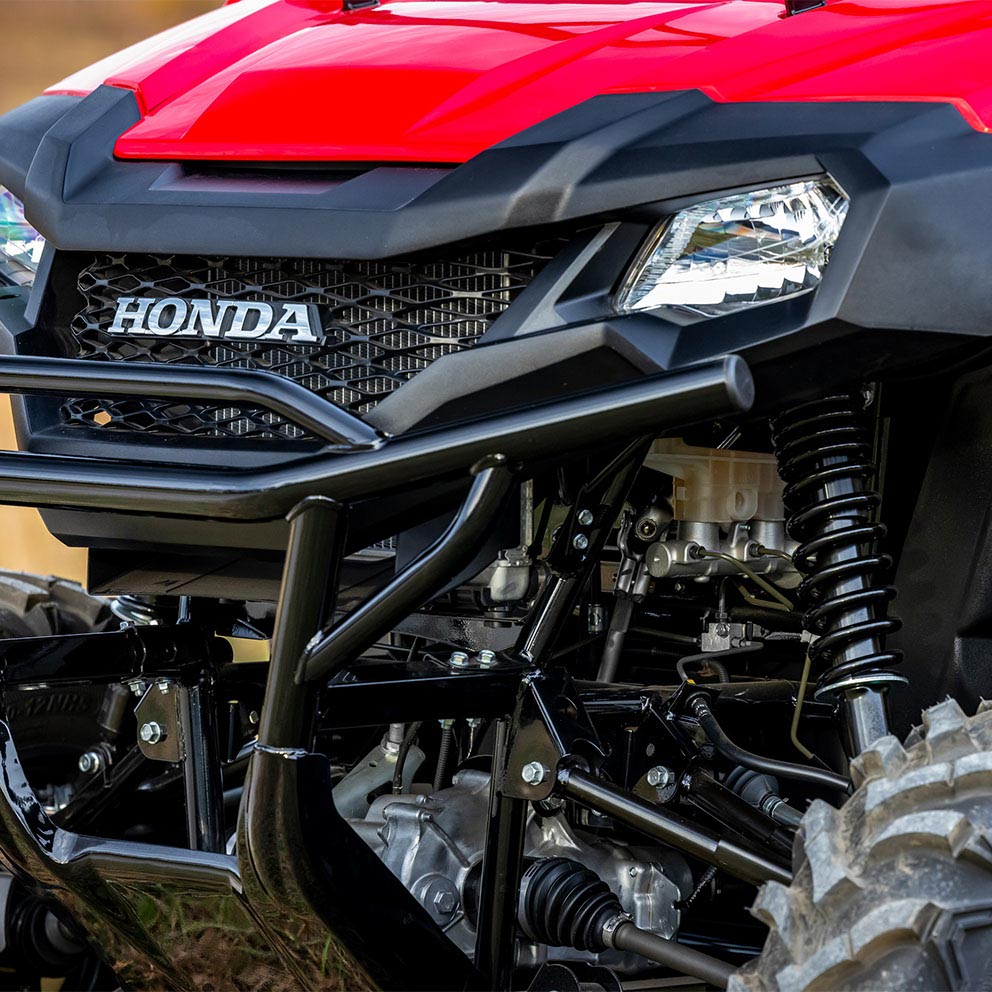

Double-wishbone front suspension
Front suspension
Independent double-wishbone; 7.9 in travel
Adjustable preload rear shocks
Rear suspension
Independent double-wishbone; 9.1 in travel

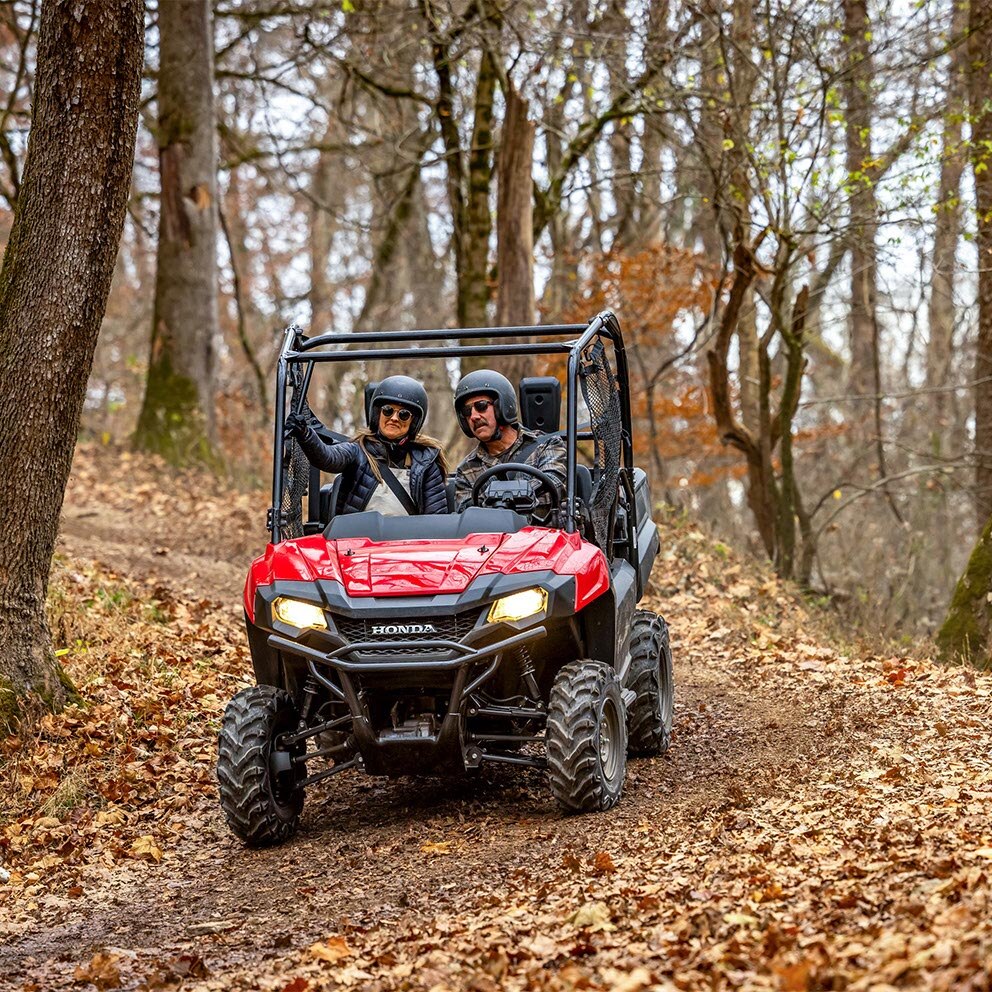

Pioneer 700 disc brakes
Brakes
Front: dual 200mm discs • Rear: single 170mm disc
Tires (stock sizing)
Front: 25 x 8-12 • Rear: 25 x 10-12
Curb weight
1292 lb (includes standard equipment, required fluids, and a full tank of fuel)

Quick spec snapshot

Dimensions (L/W/H) 114.8 in / 59.9 in / 77.6 in
Wheelbase 76.8 in
Fuel capacity 8.1 gal (including 1.5-gal reserve)
Seating capacity 2
Model ID SXS700M2
Warranty Transferable, one year included, limited warranty (extended coverage available with a HondaCare® Protection Plan)

Safety note: Recommended for drivers 16 years of age and older.

FAQ

Is the Pioneer 700 good for towing around San Diego?
It’s rated for 1,500 lb towing capacity. For best results, match your trailer setup to the load and terrain you plan to use.
How much can the bed carry?
The bed is rated for 1,000 lb capacity, making it a strong choice for property work, gear runs, and jobsite hauling.
What kind of transmission does it use?
An automotive-style automatic with a hydraulic torque converter, plus AT/MT mode and paddle shifters for added control.
What are the suspension travel numbers?
Front: 7.9 in • Rear: 9.1 in, both independent double-wishbone.
