2025 HONDA PIONEER 520

$10,499.00
$10,499.00
Sale Sold out
Plus Destination: $885

NO DEALER SETUP or ADM FEES

1 1
💬 HASSLE FREE SHOPPING
☑️ GET APPROVED
🔁 REQUEST DEMO
💲 MAKE AN OFFER
View full details

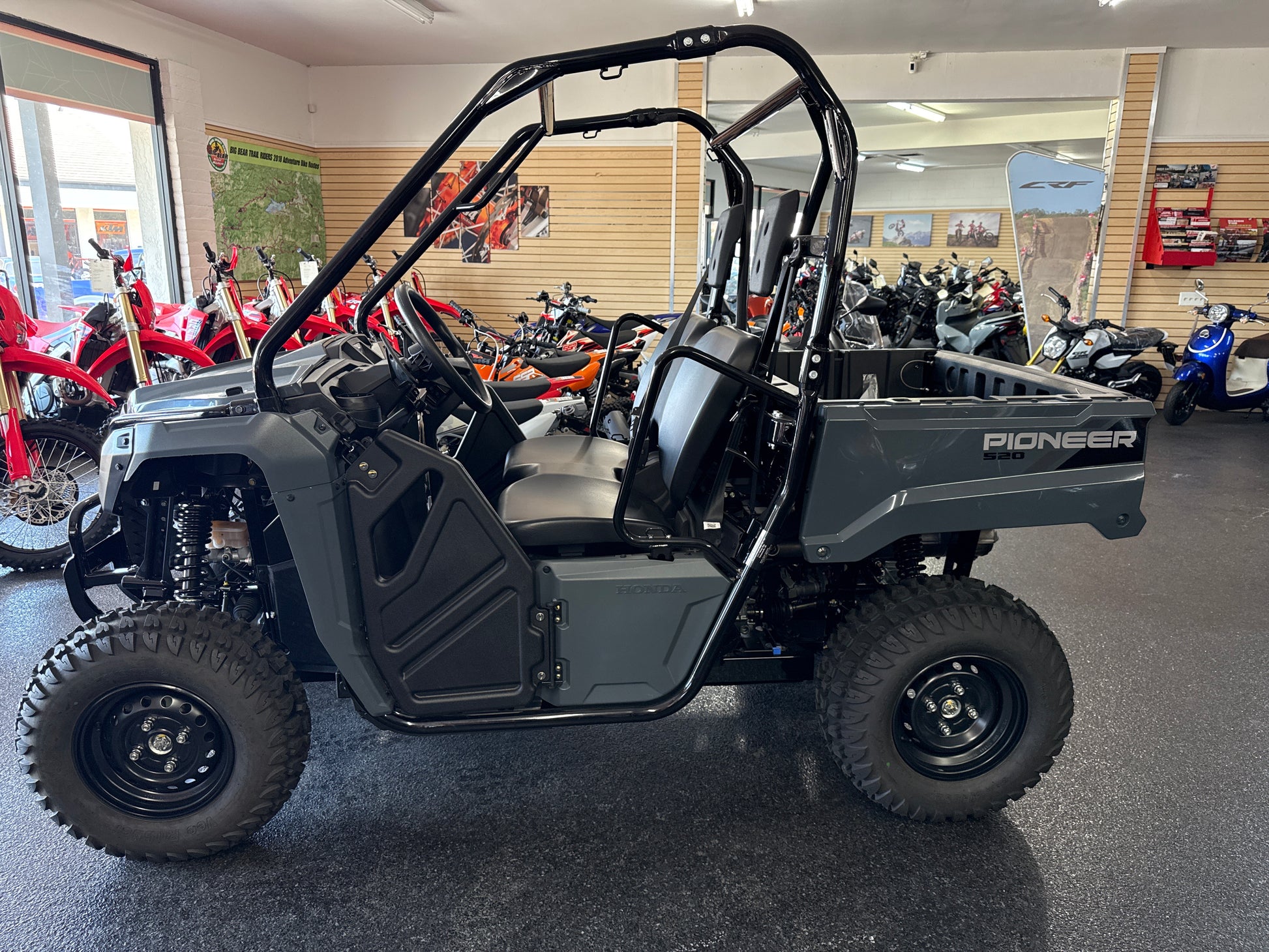

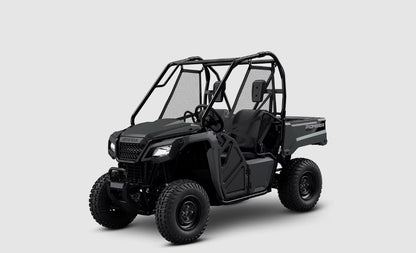

2025 HONDA PIONEER 520 – SMALL SIZE, BIG PERFORMANCE

Don’t let the compact footprint fool you — the 2025 Honda Pioneer 520 is built to do more than just squeeze through tight spaces. With a reliable 518cc fuel-injected engine, a heavy-duty automatic transmission, and a dump bed ready for work, this side-by-side is the perfect partner for property management, campground support, or weekend recreation.

Whether you're hauling feed, clearing trails, or just exploring backwoods paths too narrow for full-size UTVs, the Pioneer 520 gives you all the toughness of Honda in a nimble, easy-to-handle package. It’s the smart solution when space is tight but expectations are high.

UNIT SPECS

ENGINE TYPE: 518cc liquid-cooled single-cylinder four-stroke

FUEL SYSTEM: PGM-FI fuel injection

COMPRESSION RATIO: 9.5:1

TRANSMISSION: 5-speed automatic with manual paddle-shift mode

DRIVELINE: 4WD with selectable Turf Mode

FRONT SUSPENSION: Independent double-wishbone; 5.8 in travel

REAR SUSPENSION: Independent double-wishbone; 5.9 in travel

FRONT BRAKES: Dual hydraulic discs

REAR BRAKES: Single hydraulic disc

FRONT TIRES: 24 x 8-12

REAR TIRES: 24 x 10-12

GROUND CLEARANCE: 8.5 in

WHEELBASE: 73 in

SEAT HEIGHT: 28.6 in

CURB WEIGHT: 1,055 lbs

CARGO BED CAPACITY: 450 lbs

TOWING CAPACITY: 1,000 lbs

FUEL CAPACITY: 3.2 gal (including 1.1 gal reserve)

FEATURES

518cc ENGINE: The Pioneer 520 is powered by the same proven engine used in Honda’s larger Rancher ATV, offering reliable torque, smooth power, and excellent fuel efficiency.

AUTOMATIC TRANSMISSION WITH MANUAL MODE: Featuring a 5-speed gearbox with paddle shifters, the Pioneer 520 gives you the choice of automatic ease or manual control on demand.

COMPACT 50-INCH WIDTH: At just 50 inches wide, the Pioneer 520 fits on tight trails, through gates, and even in the back of most full-size pickup trucks.

TILTING CARGO BED: A durable dump bed with 450-pound capacity makes it easy to haul tools, supplies, or debris — and tilts for fast unloading.

RECEIVER-STYLE HITCH: Tow up to 1,000 pounds with integrated 2-inch hitch receiver — perfect for utility trailers or small equipment.

HONDA DURABILITY: Built with legendary Honda reliability, low-maintenance design, and long-lasting components that hold up to real-world use.

INDEPENDENT SUSPENSION: Front and rear independent suspension provides a smooth ride and solid handling over uneven terrain.

📄 Download Owner's Manual

See TERMS for details. Plus government fees and taxes, any finance charges, dealer document processing charges, electronic filing fees, emission testing charges, and freight. All sale prices include applicable factory incentives. Availability may vary. Some items may not be in immediate dealer stock and may require ordering. Estimated order time ranges from 1 to 90 days. Please see terms for full details. Please call to confirm availability.
