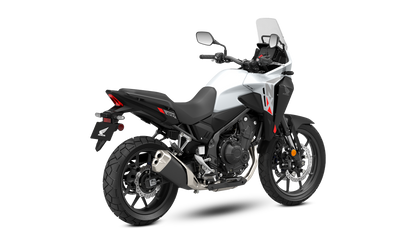

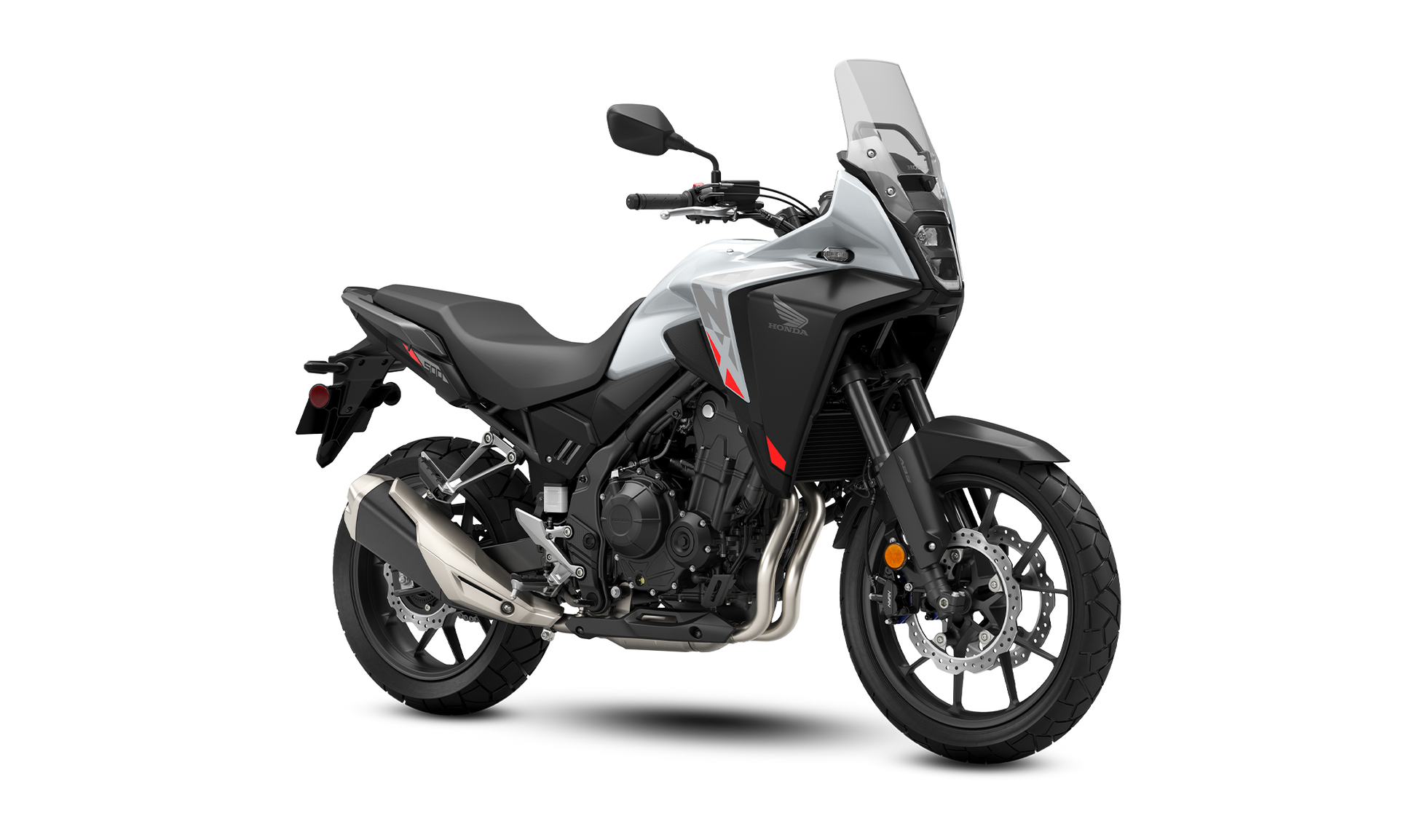

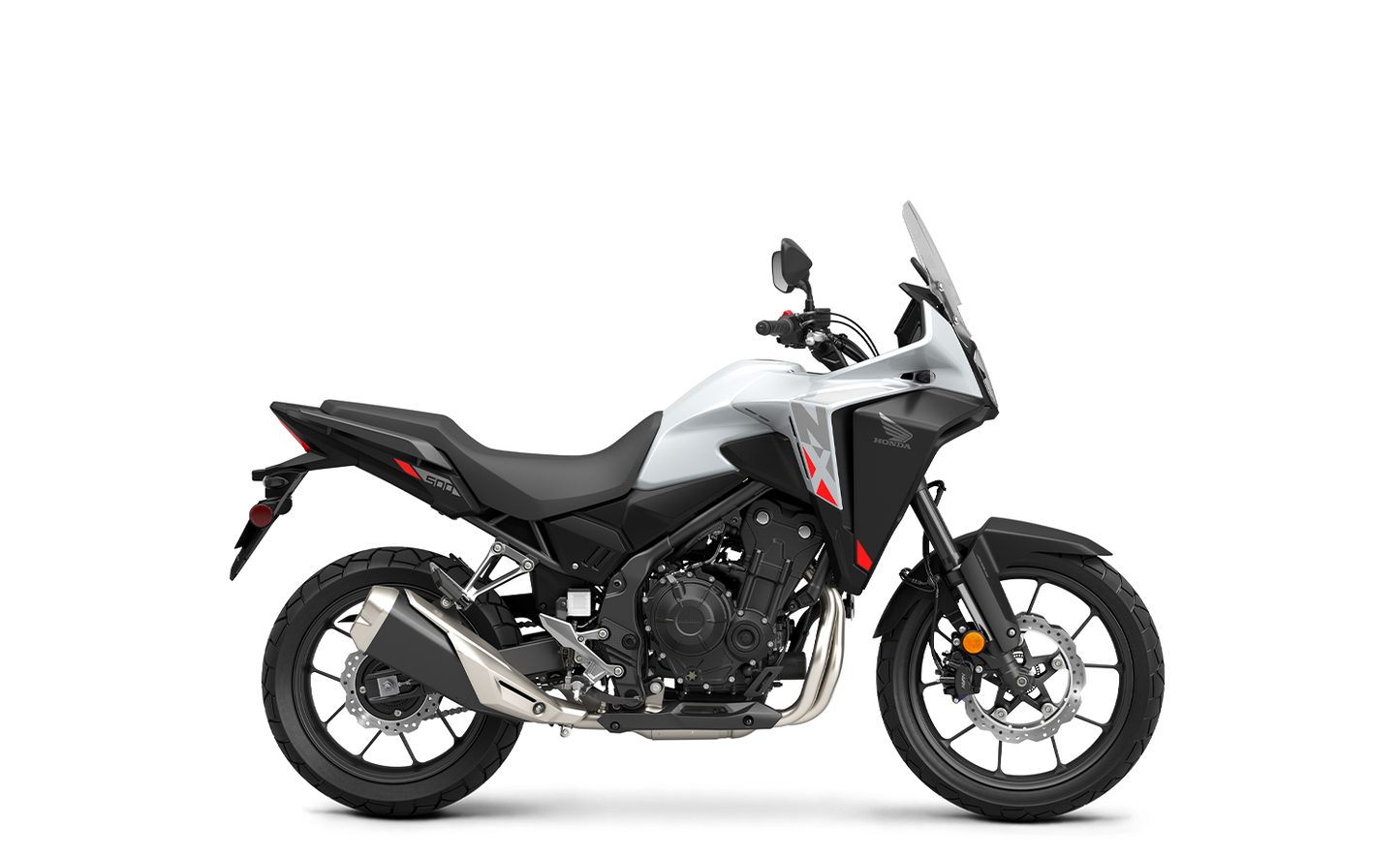

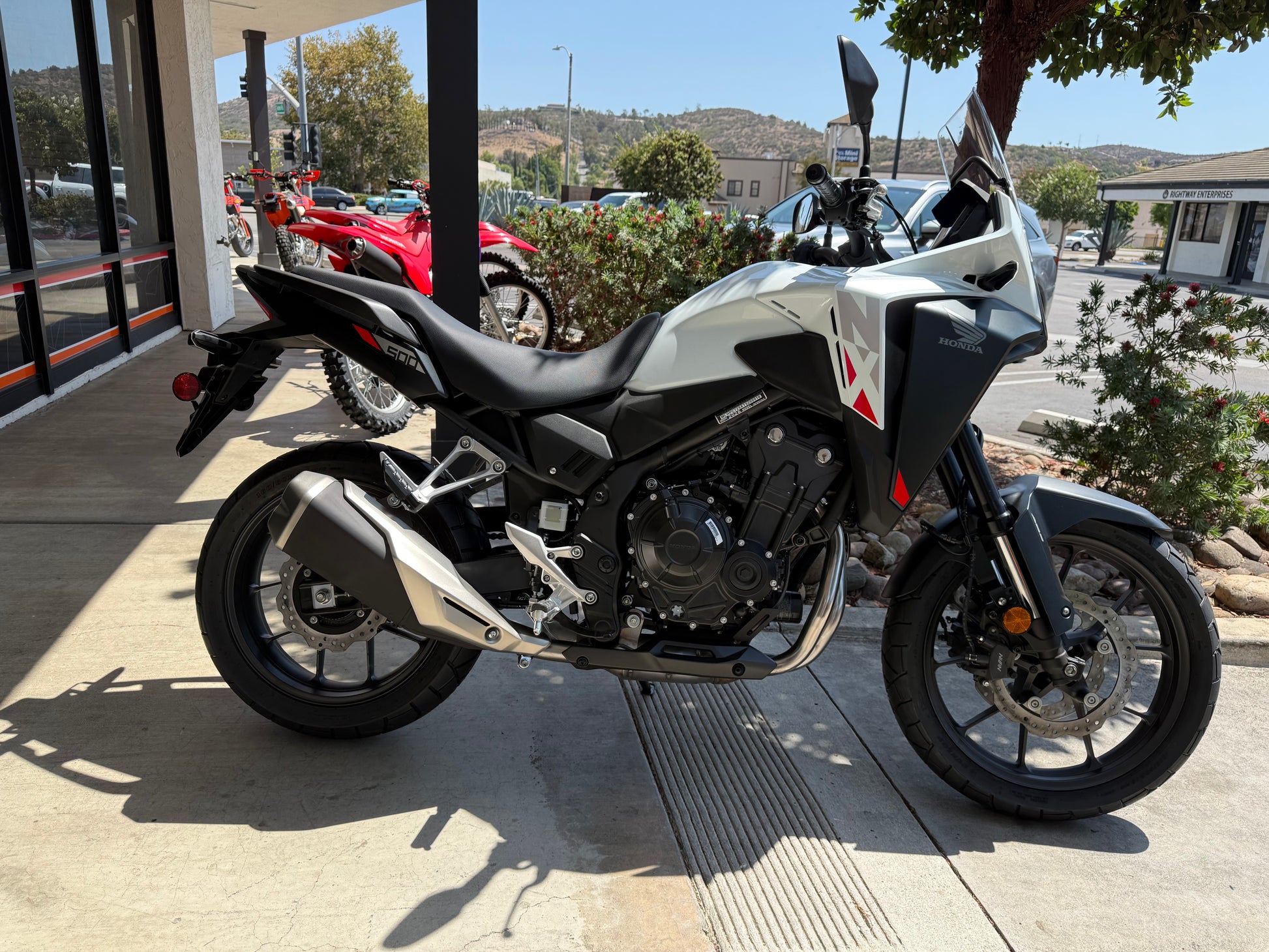

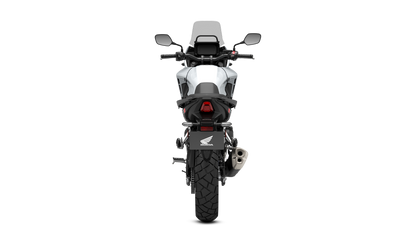

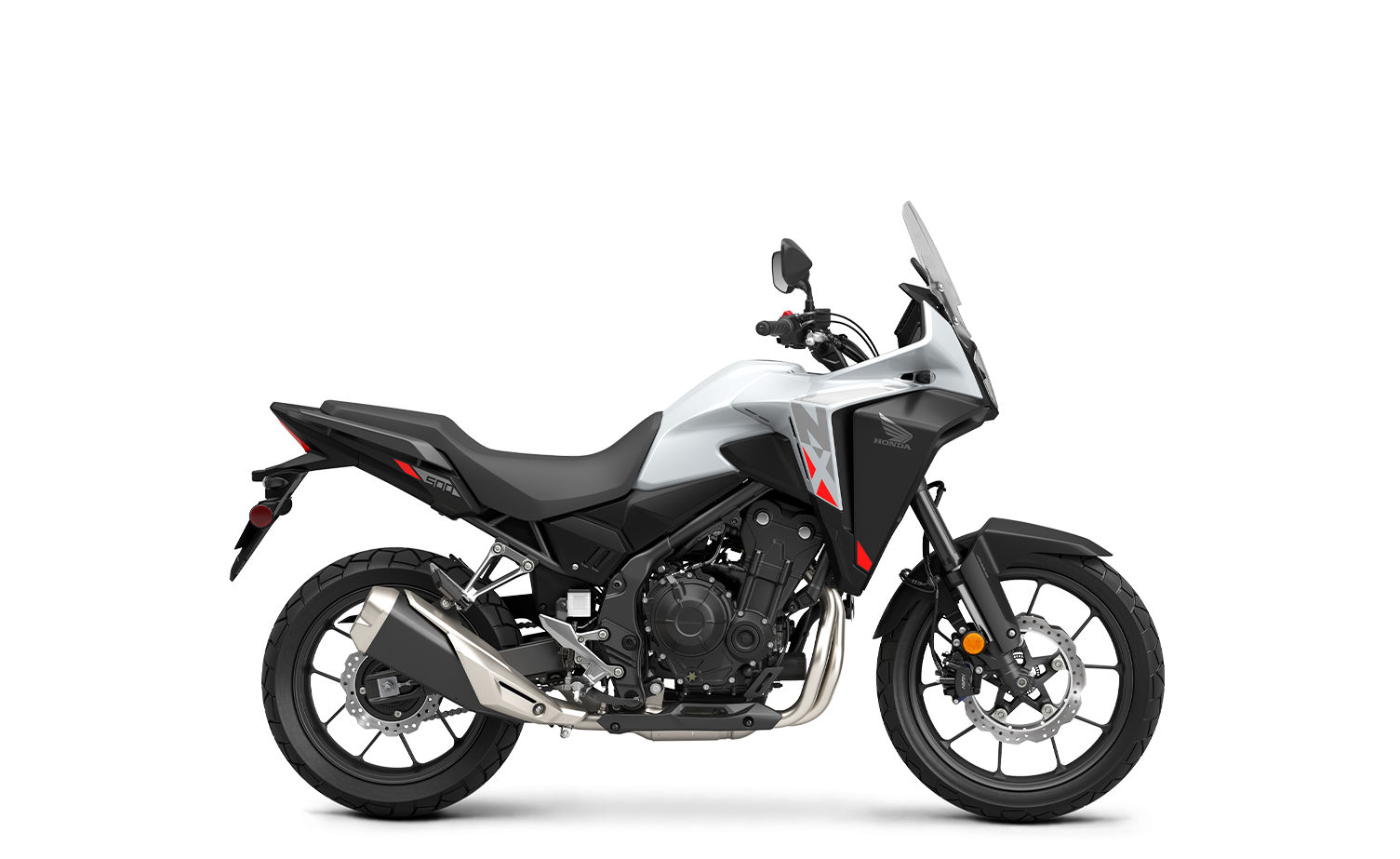

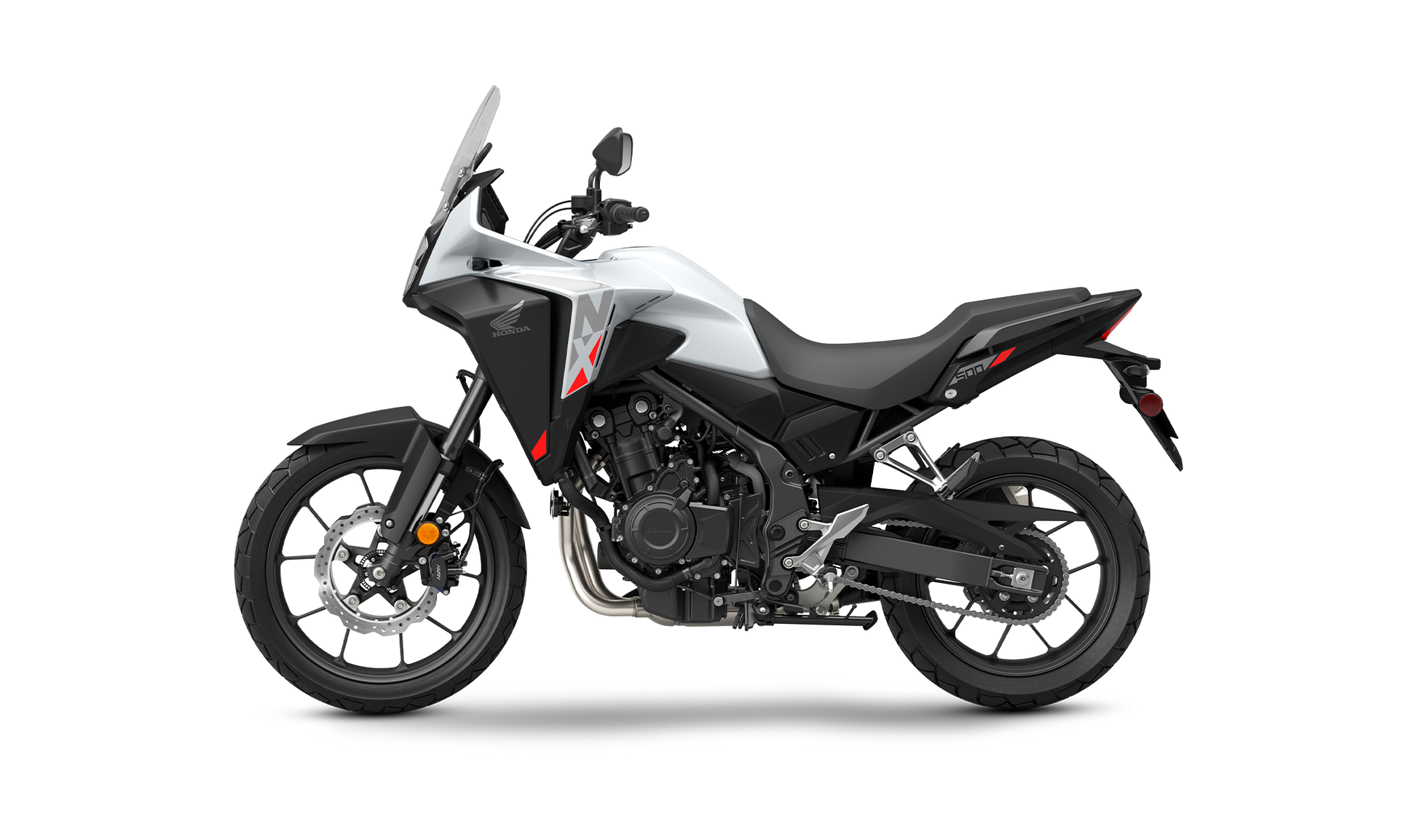

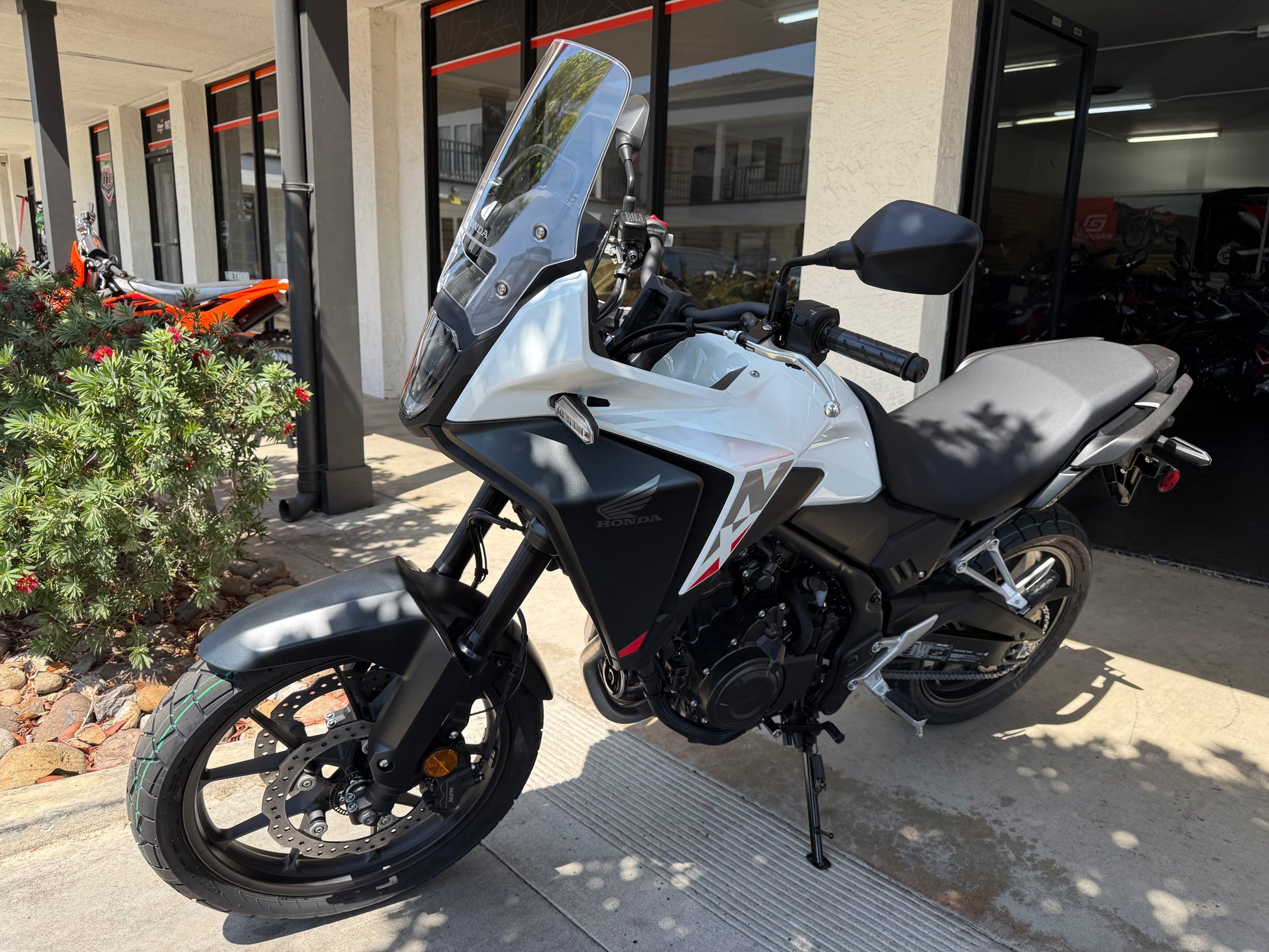

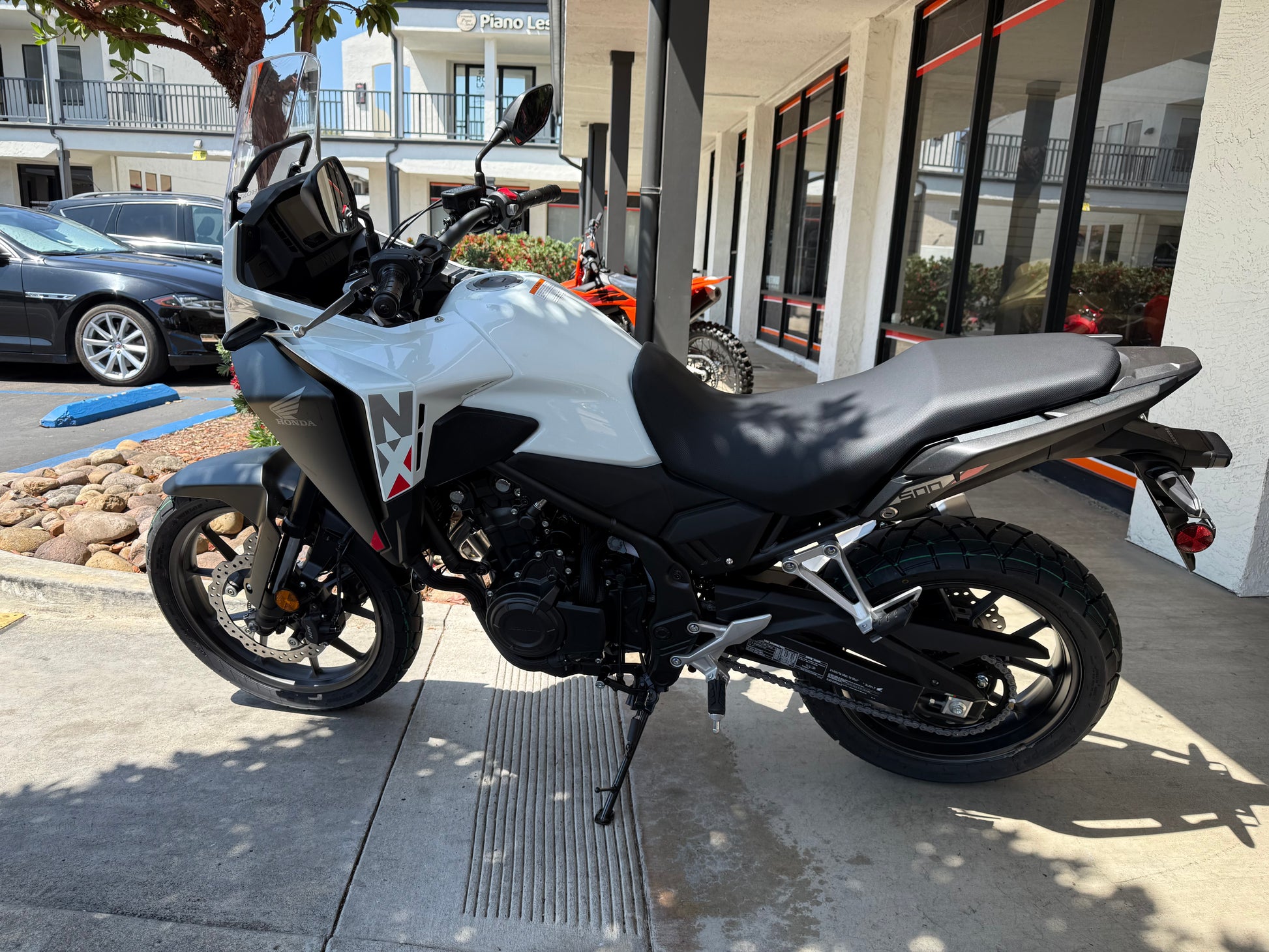

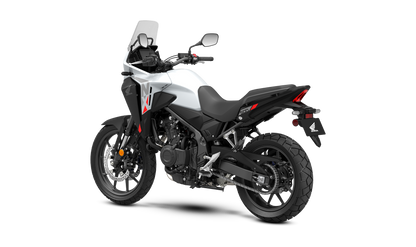

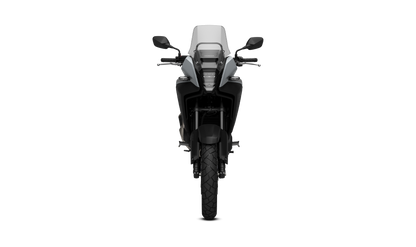

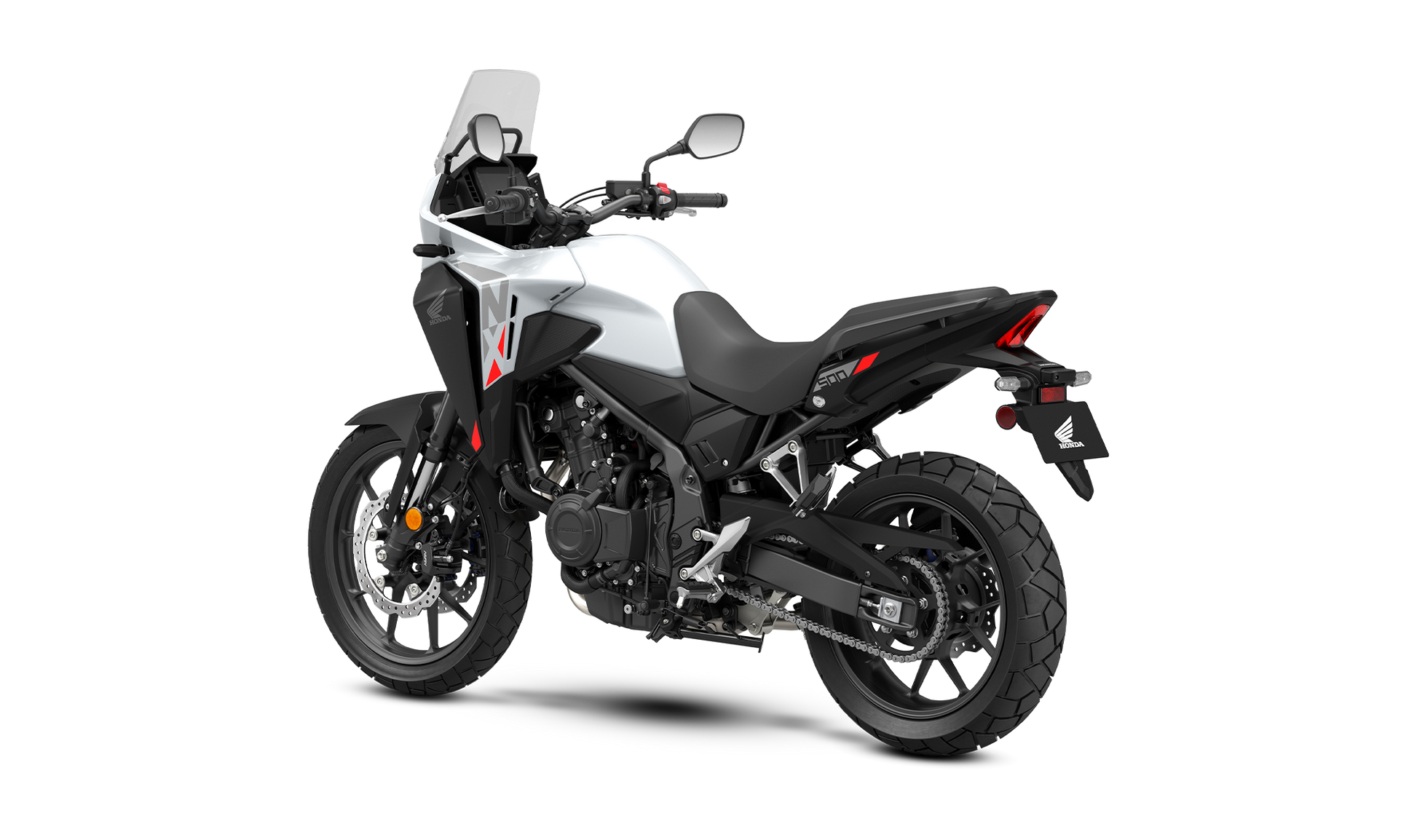

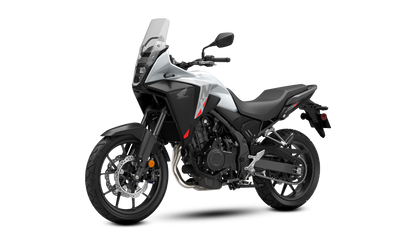

2026 Honda NX500 - Pearl White

Engine, fueling, and transmission feel

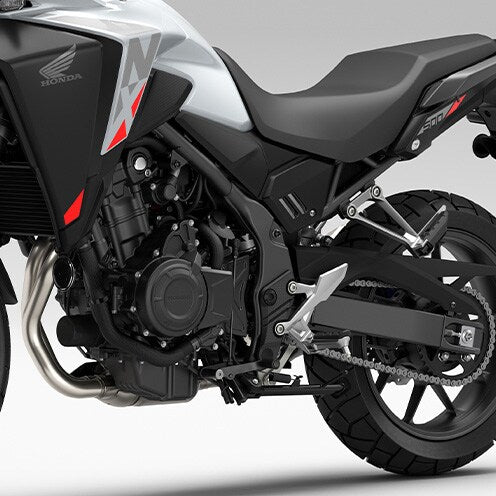

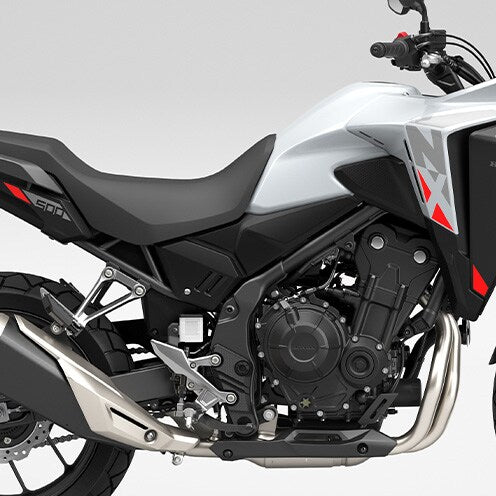

At the heart of the NX500 is a 471cc liquid-cooled, four-stroke parallel-twin with a 10.7:1 compression ratio and a 67.0mm x 66.8mm bore and stroke. The DOHC valvetrain uses four valves per cylinder, and Honda’s Programmed Fuel Injection (PGM-FI) works through a 34mm throttle body to keep fueling consistent as conditions change.

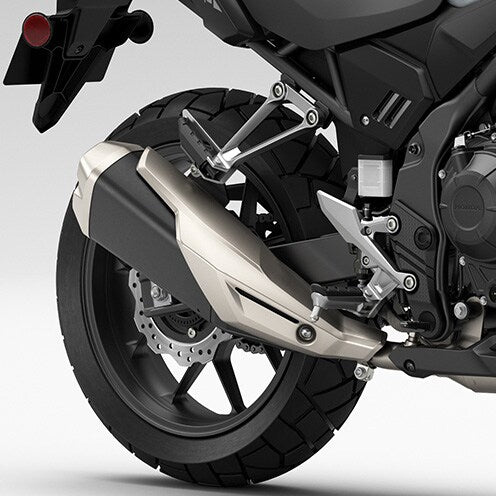

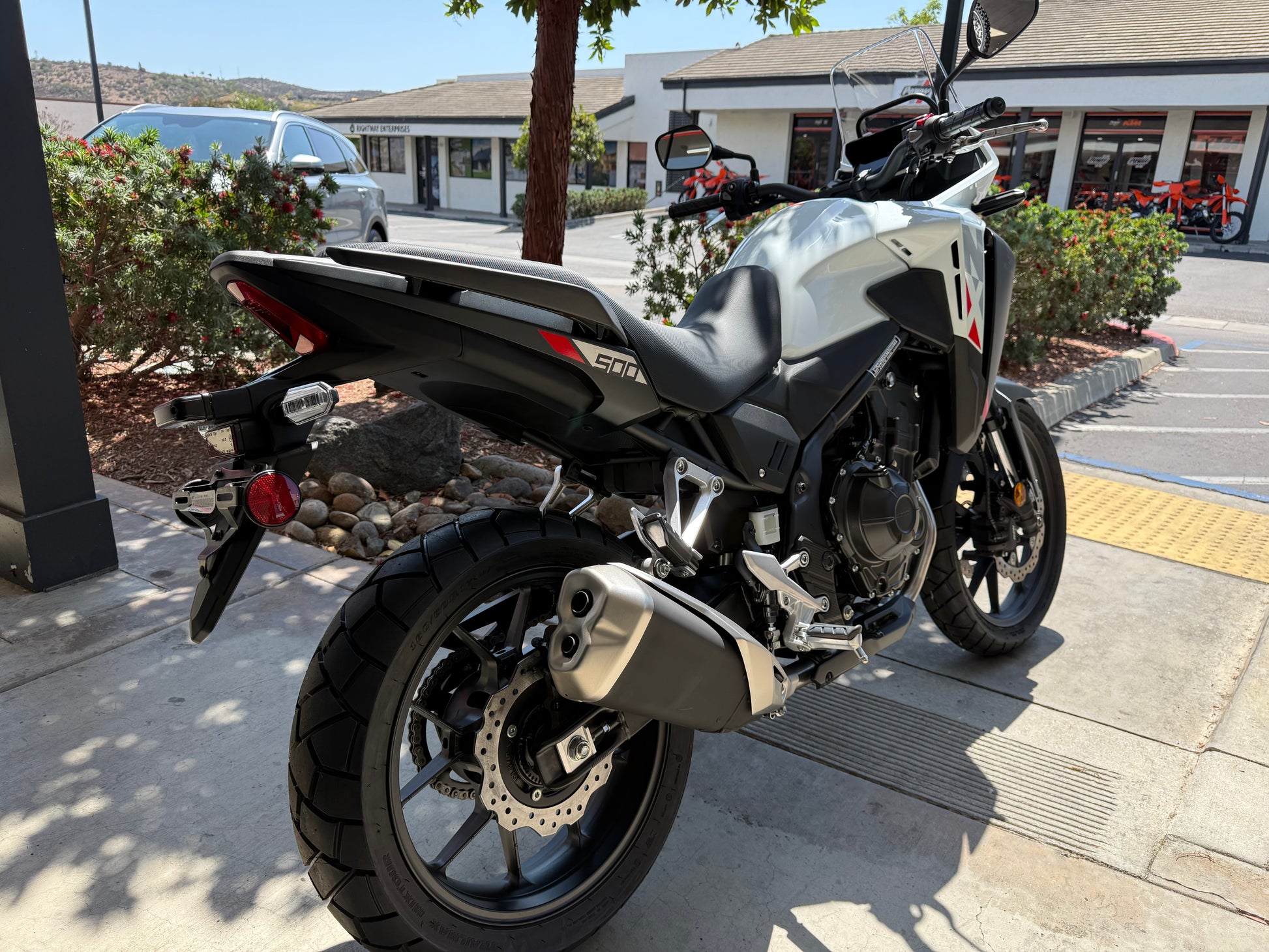

A six-speed manual transmission is paired with a slipper clutch, and Honda also notes the transmission’s internal components were designed to reduce shifting effort. Power is sent through a #520 O-ring-sealed chain with 15T/41T gearing. Completing the package is a muffler with twin outlets, a styling touch that also shapes the bike’s sound character.

Suspension, wheels, and everyday manageability

The NX500 is set up with adventure-touring intent while staying manageable day to day. Up front is a 41mm inverted Showa SFF-BP fork with 5.9 inches of travel, while the rear uses a single shock with 5.3 inches of travel. A 27.0° rake and 4.3 inches of trail help define the steering geometry, and the 56.8-inch wheelbase keeps the chassis well balanced.

Multi-spoke cast aluminum wheels are lightweight, designed to enhance handling, and are compatible with various adventure touring tires. Tire sizing is 110/80-19 front and 160/60-17 rear. For riders planning mixed surfaces, the NX500 lists 7.1 inches of ground clearance, along with a 32.8-inch seat height and a curb weight of 432 pounds (including all standard equipment, required fluids, and a full tank of fuel).

Braking, instrumentation, and touring-ready details

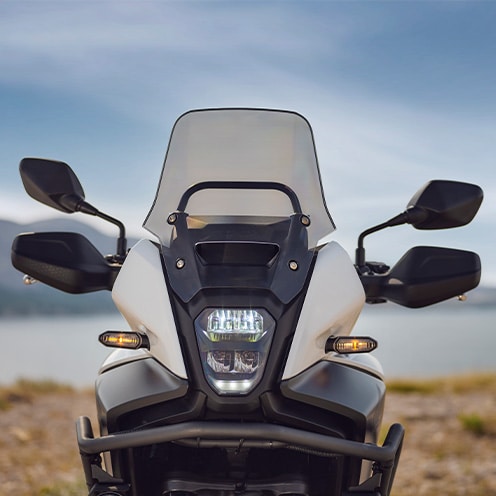

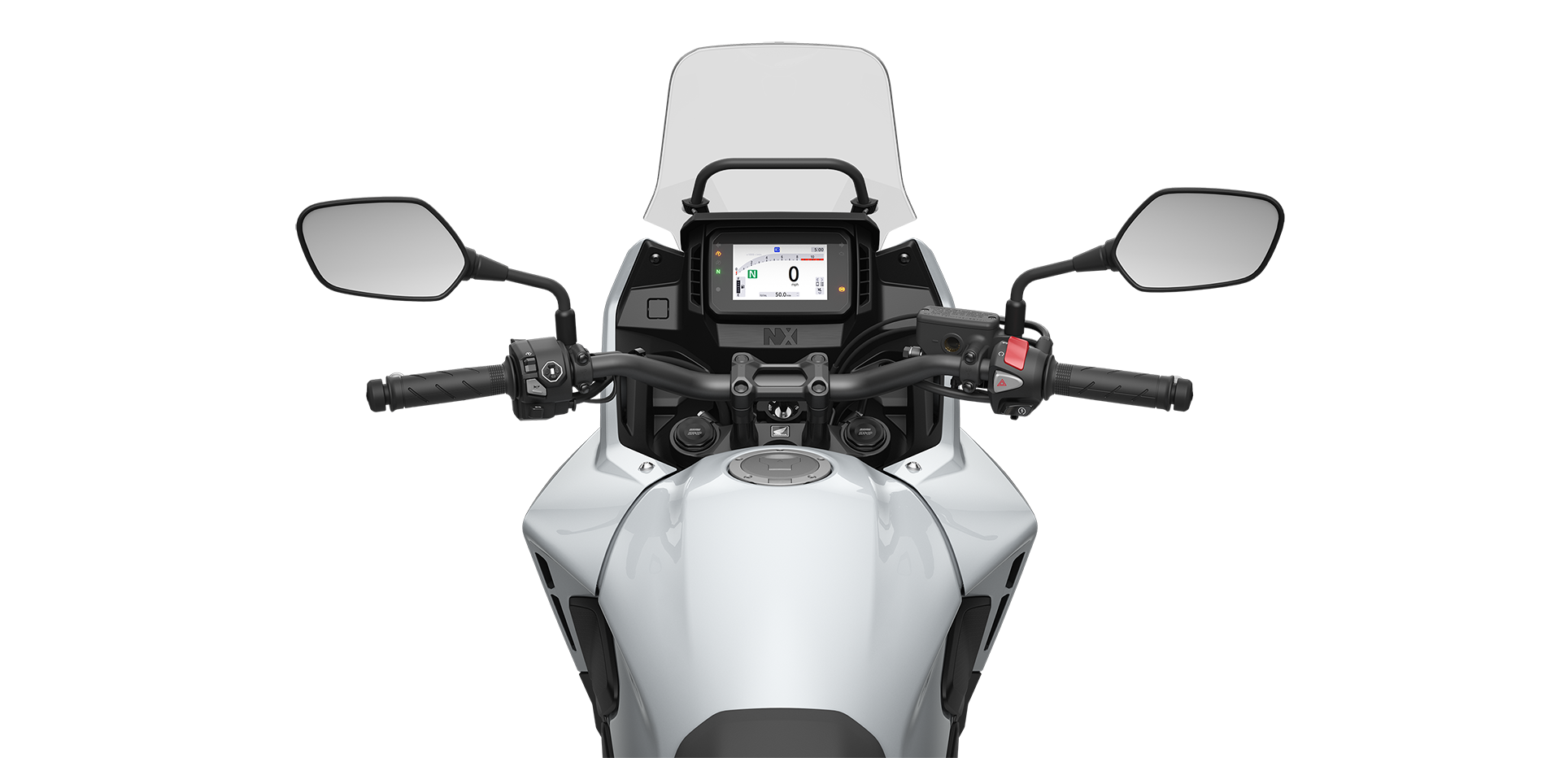

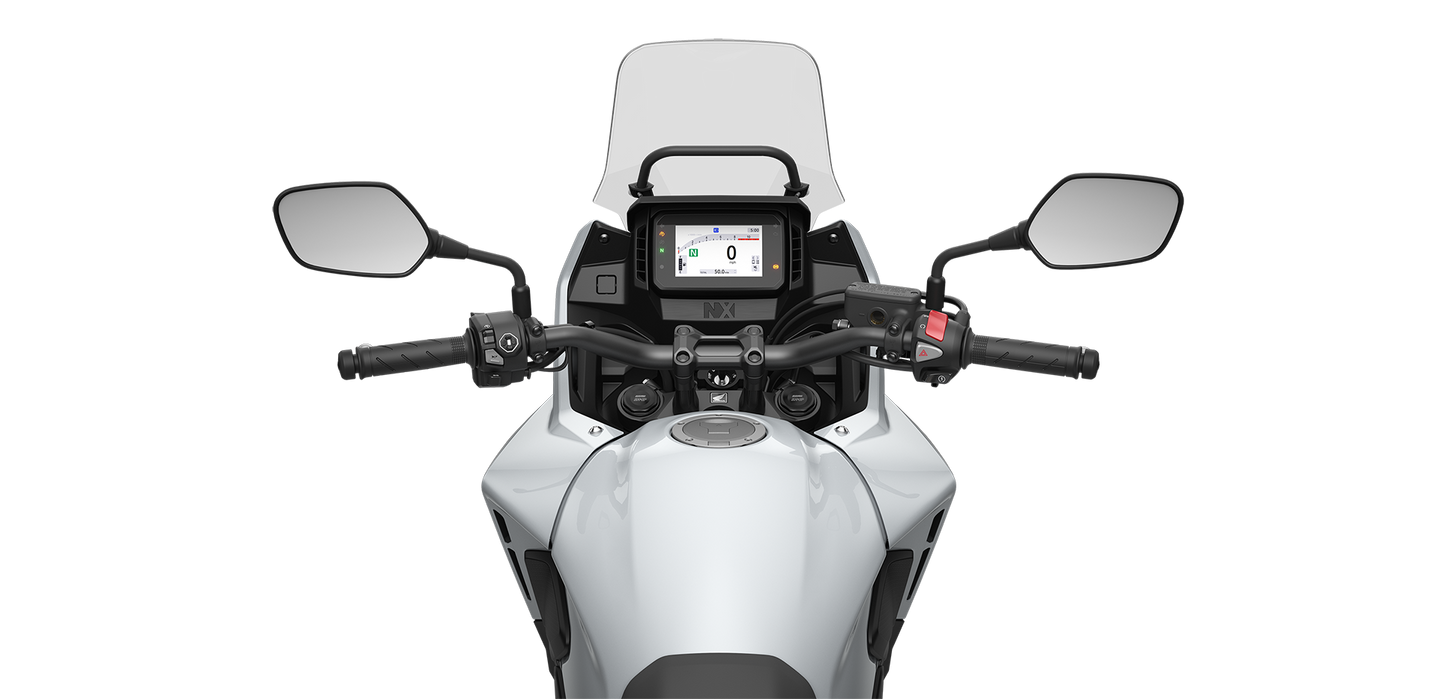

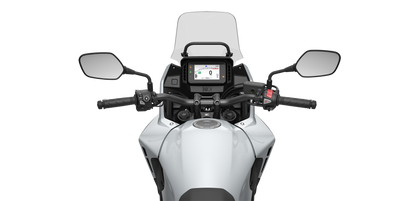

Braking equipment is a strong point, with dual 296mm front discs and four-piston calipers, plus a 240mm rear disc. ABS is standard equipment. The NX500 also includes digital instrumentation, giving you key ride information at a glance, and LED lighting with a headlight and multifaceted reflectors designed for excellent visibility.

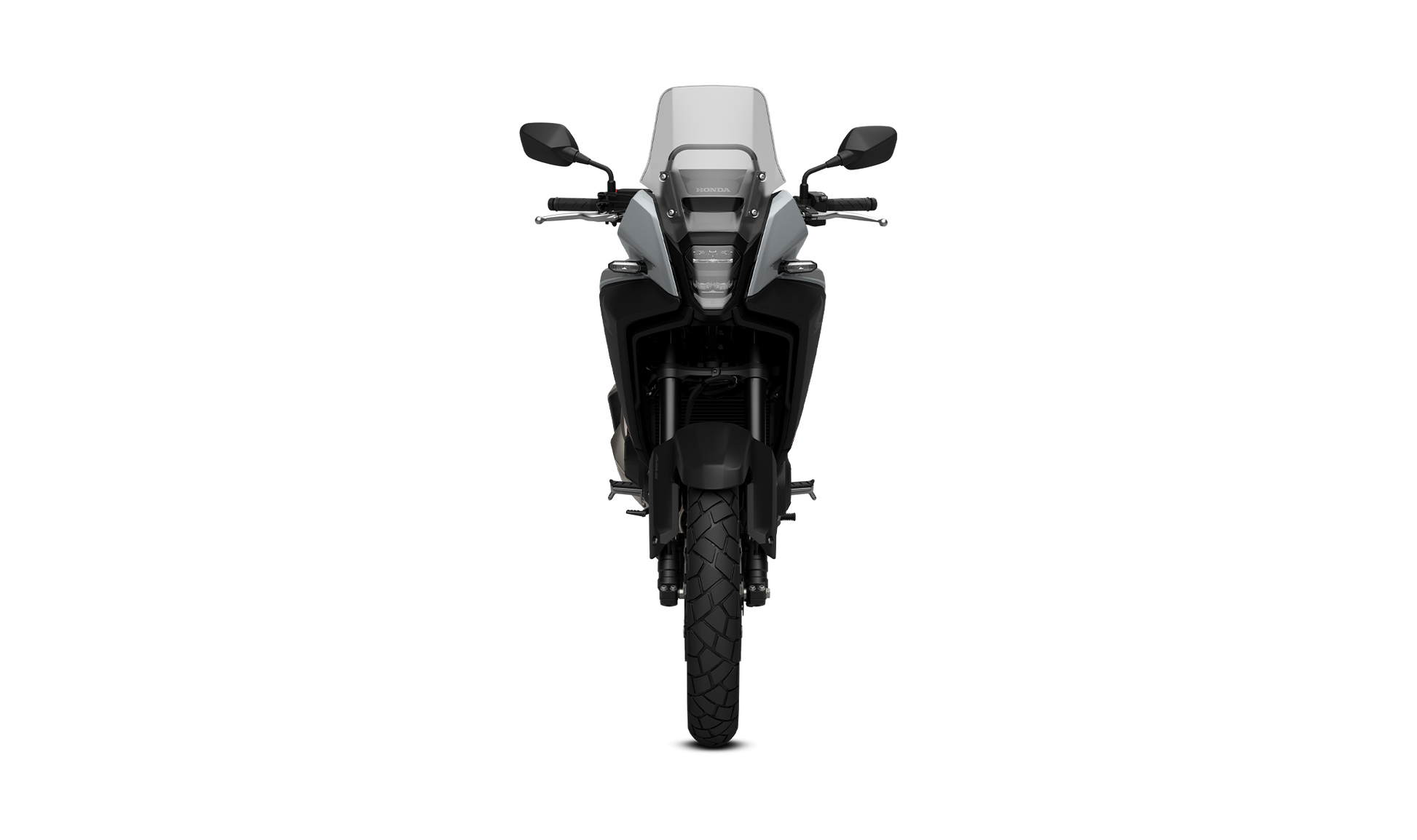

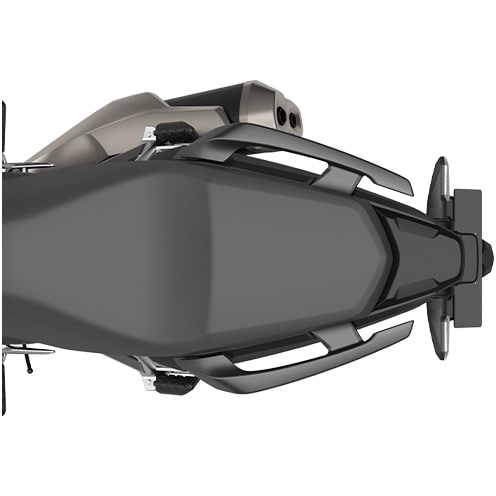

For comfort and practicality, Honda fits a tall windscreen and includes passenger handholds that add security for a passenger and can also serve as tie-down points for cargo items. The 4.7-gallon fuel tank supports longer stretches between stops. If you want to tailor the bike further, Honda lists a range of 18 available accessories, including a centerstand, hand guards, heated grips, and hard luggage.

Warranty coverage

The 2026 Honda NX500 includes a transferable, one year limited warranty. For riders who want additional coverage options, extended coverage is available with a HondaCare Protection Plan.
