2026 HONDA PIONEER 520

$10,999.00
$10,999.00
Sale Sold out
Plus Destination: $885

NO DEALER SETUP or ADM FEES

1 1
💬 HASSLE FREE SHOPPING
☑️ GET APPROVED
🔁 REQUEST DEMO
💲 MAKE AN OFFER
View full details

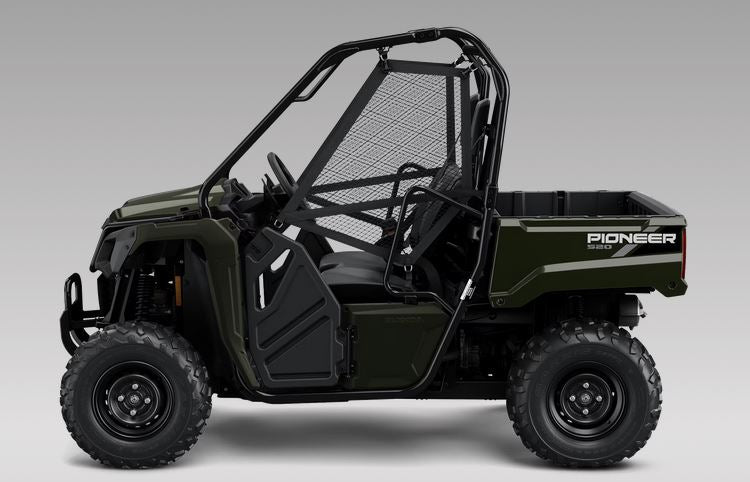

2026 HONDA PIONEER 520 – SMALL SIZE, BIG PERFORMANCE

The 2026 Honda Pioneer 520 packs the strength and dependability of Honda’s legendary workhorse UTV lineup into a compact, nimble package that’s ready for trails, farms, and tight job sites alike. Powered by a fuel-injected 518cc single-cylinder engine paired with a fully automatic 5-speed transmission featuring both AT and MT modes, this machine balances convenience and control perfectly. With independent double-wishbone suspension front and rear, generous ground clearance, and a 1,000-pound towing capacity, the Pioneer 520 doesn’t shy away from real work—or real fun. Whether you’re hauling gear around your property, exploring narrow mountain paths, or heading deep into the desert, this compact side-by-side gets it done with Honda’s signature reliability and smooth, confident handling. Built tough, refined for comfort, and backed by Honda’s one-year transferable warranty, the 2026 Pioneer 520 is ready to go wherever your day demands.

UNIT SPECS

SPECIFICATIONS

ENGINE

Type: 518cc liquid-cooled single-cylinder four-stroke

Bore & Stroke: 96.0mm x 71.5mm

Compression Ratio: 9.5:1

Valve Train: OHV; two valves per cylinder

Induction: PGM-FI with 36mm throttle body

DRIVETRAIN

Clutch: Automatic

Transmission: Five-speed automatic with AT/MT modes

Driveline: Direct front and rear driveshafts

CHASSIS / SUSPENSION / BRAKES

Front Suspension: Independent double-wishbone; 5.8 in. travel

Rear Suspension: Independent double-wishbone; 5.9 in. travel

Front Brakes: Dual 200mm discs

Rear Brake: Single 170mm disc

Front Tires: 24 x 8-12

Rear Tires: 24 x 10-12

DIMENSIONS

Length: 105.0 in.

Width: 50.0 in.

Height: 71.2 in.

Wheelbase: 73.0 in.

Ground Clearance: 8.5 in.

Turning Radius: 12.8 ft.

Curb Weight: 1,060 lbs (with full fluids & fuel)

Fuel Capacity: 4.1 gal.

CAPACITIES

Bed Capacity: 450 lbs

Towing Capacity: 1,000 lbs

Seating Capacity: 2

OTHER INFORMATION

Available Colors: Hero Red, Black Forest Green, Cactus Green

Model ID: SXS520M2

Warranty: One-year transferable, limited

Optional Coverage: HondaCare® Protection Plan available

Recommended Age: 16 years and older

FEATURES

FEATURES

Powerful 518cc Engine: The liquid-cooled, fuel-injected single-cylinder engine delivers strong torque and smooth power for tackling tough terrain or heavy loads.

Automatic Transmission with AT/MT Modes: Choose between fully automatic operation for simplicity or manual shifting for hands-on control—ideal for changing terrain or hauling tasks.

Compact and Capable Design: At just 50 inches wide, the Pioneer 520 fits on tight trails and in pickup beds while still offering impressive towing and payload capacity.

Independent Double-Wishbone Suspension: Front and rear suspension systems with nearly 6 inches of travel provide a comfortable, stable ride over uneven surfaces.

Durable Utility Bed: The sturdy tilting bed can handle up to 450 pounds of cargo, making it easy to carry tools, equipment, or weekend gear.

Proven Honda Reliability: Backed by a transferable one-year warranty with optional HondaCare® Protection Plan for long-term peace of mind.

📄 Download Owner's Manual

See TERMS for details. Plus government fees and taxes, any finance charges, dealer document processing charges, electronic filing fees, emission testing charges, and freight. All sale prices include applicable factory incentives. Availability may vary. Some items may not be in immediate dealer stock and may require ordering. Estimated order time ranges from 1 to 90 days. Please see terms for full details. Please call to confirm availability.
