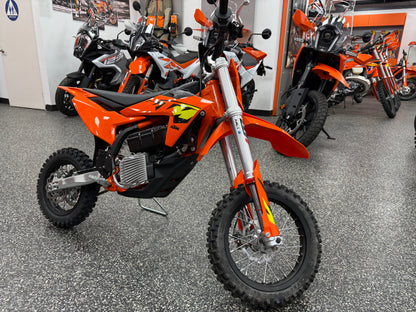

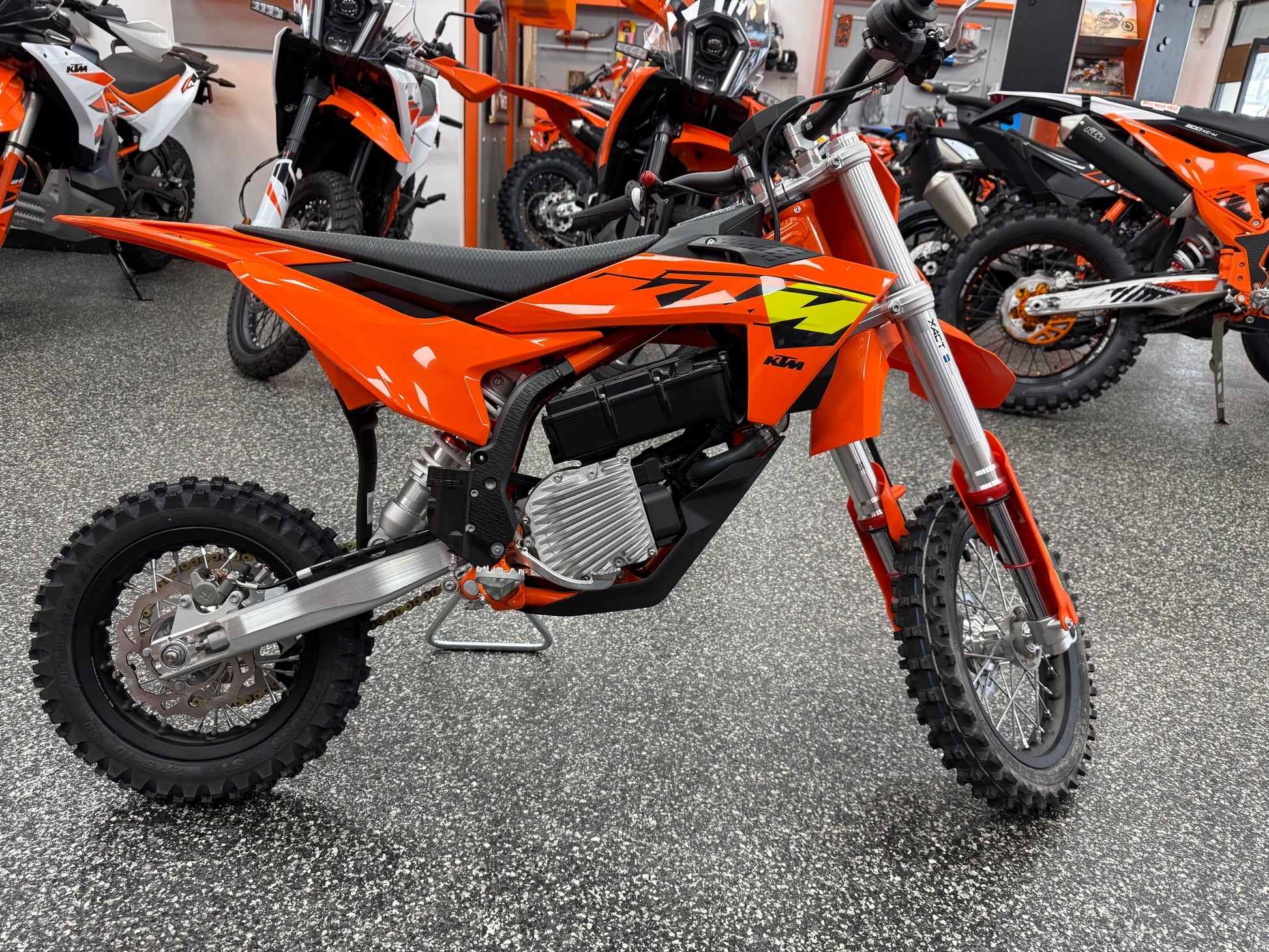

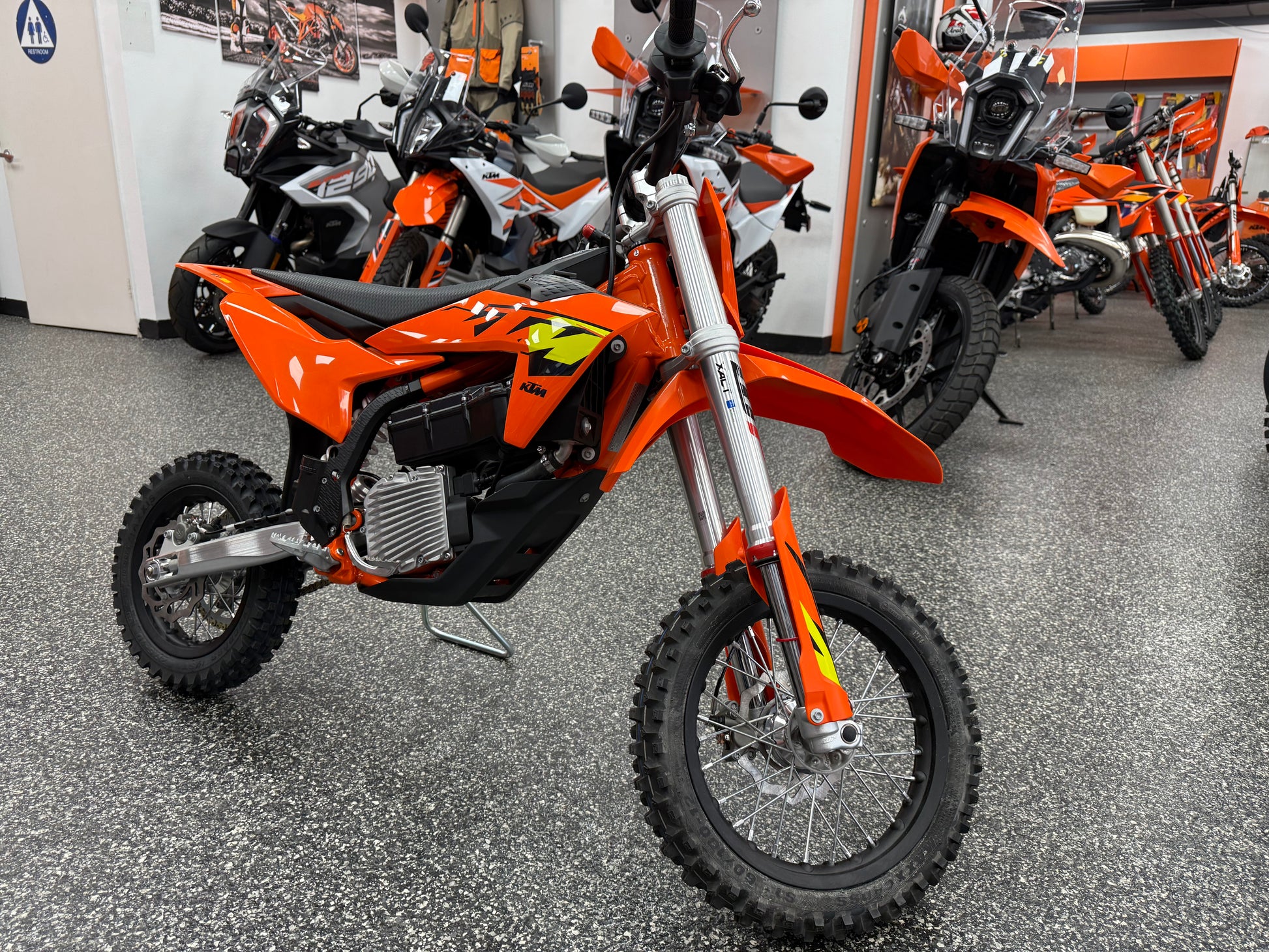

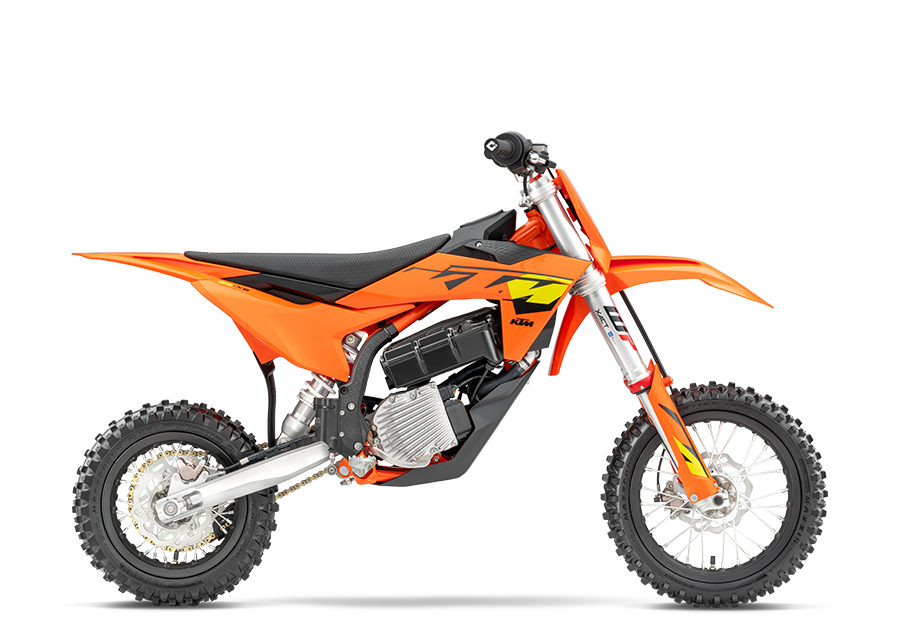

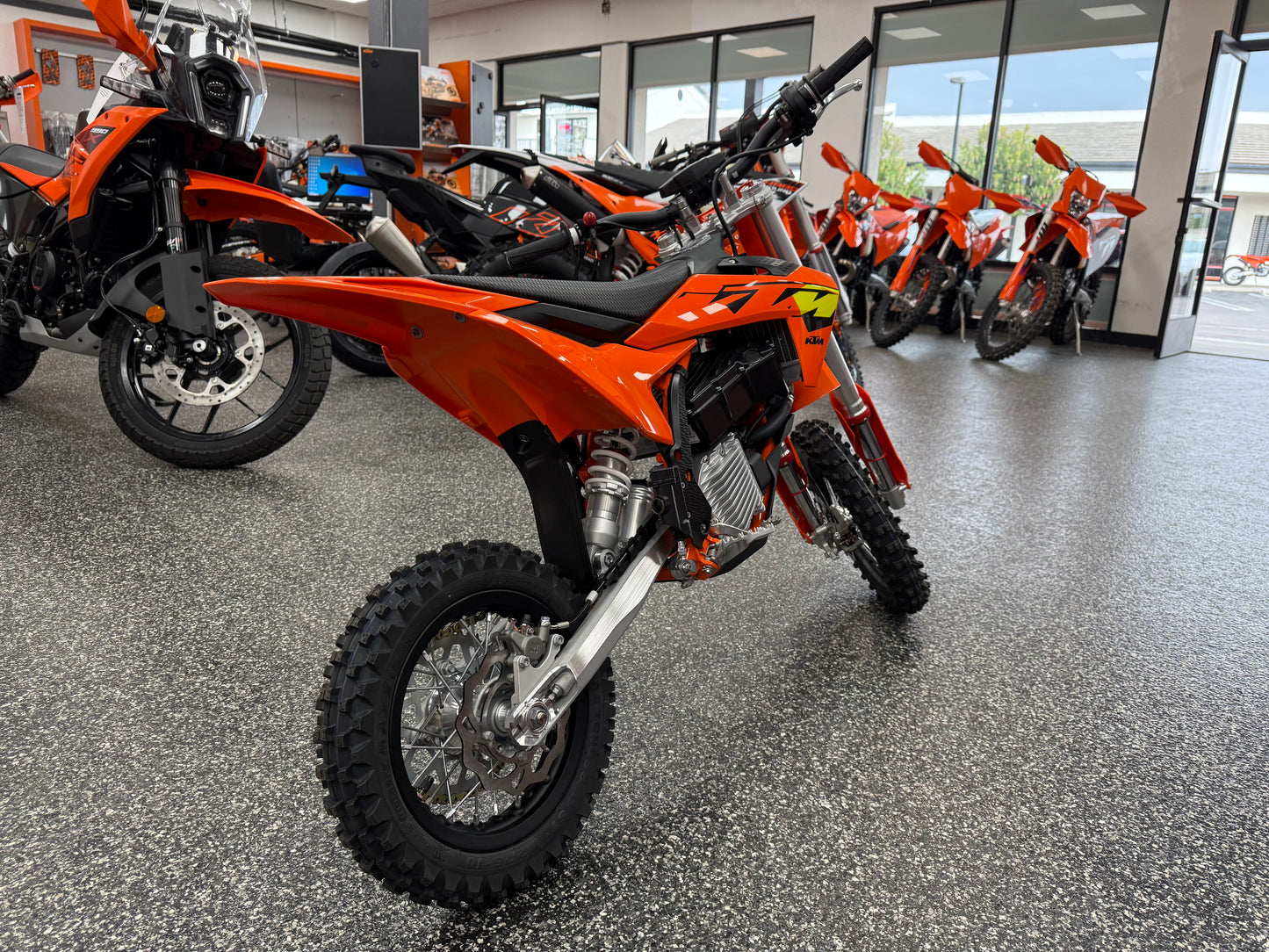

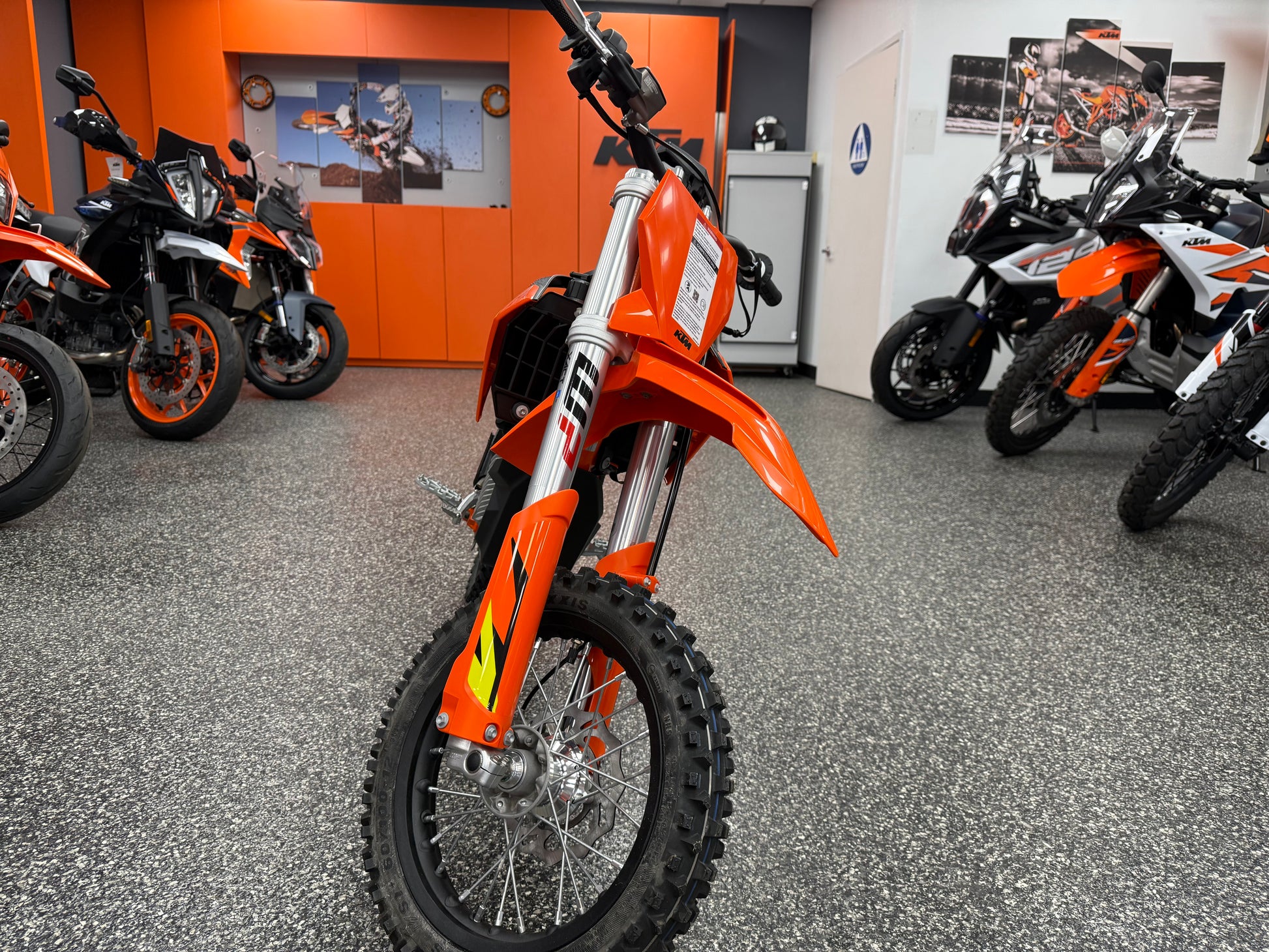

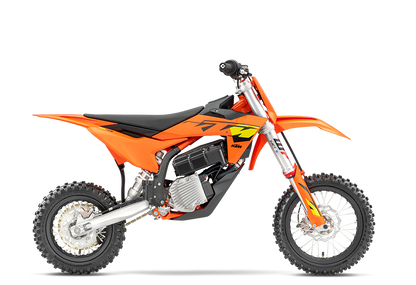

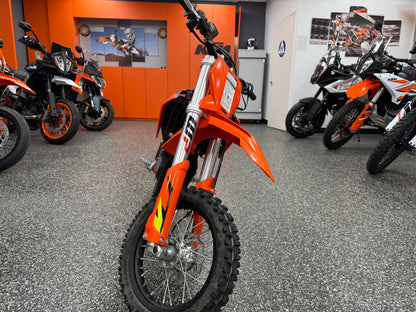

2026 KTM SX-5E

$5,799.00
$5,799.00
Sale Sold out
Plus Destination: $410

NO DEALER SETUP or ADM FEES

1 7
INSTANT OTD QUOTE /
BUY ONLINE NOW
☑️ GET APPROVED
🔁 REQUEST DEMO
💲 MAKE AN OFFER

VIN: VBKM1A0E3TM025311

View full details

2026 KTM SX-5E – ELECTRIC PERFORMANCE FOR THE NEXT GENERATION

The 2026 KTM SX-5E delivers real KTM race DNA in a fully electric platform designed to introduce young riders to serious motocross performance. Built with the same engineering mindset as KTM’s full-size SX machines, the SX-5E offers instant torque, precision handling, and quiet operation that makes it ideal for backyard practice, private tracks, and controlled riding environments across Southern California.

At the heart of the SX-5E is a modern 48-volt brushless electric motor paired with KTM’s Lithium-Ion PowerPack. This system provides smooth, consistent power delivery with a strong torque curve that helps young riders develop throttle control, cornering skills, and confidence without the distractions of shifting or engine noise. The result is a riding experience that feels responsive and exciting while remaining approachable and easy to manage.

The SX-5E’s lightweight chrome-molybdenum steel frame, combined with KTM’s XACT WP suspension, gives this youth platform the same structural integrity and handling philosophy found in KTM’s championship-winning motocross lineup. From local practice tracks to family riding areas throughout the San Diego region, the SX-5E is engineered to help young riders build real riding technique on a machine that looks, feels, and performs like a true KTM.

Explore More: 2026 KTM SX-5E
Quick links to guides and local availability at Poway Powersports.
UNIT SPECS ▾

Engine & Electrical

  • Motor type: 48 V BLDC electric motor (outer rotor)
  • Max. power: 5 kW @ 3,900 rpm
  • Rated output: 2 kW @ 3,200 rpm
  • Torque: 13.8 Nm
  • Max. motor speed: 6,000 rpm
  • Battery capacity: 21 Ah
  • Traction battery: Lithium-Ion KTM PowerPack
  • Charging power: 900 W
  • Charger line voltage: 80–240 V / 50–60 Hz
  • Charging time (80%): 45 min.
  • Charging time (100%): 70 min.
  • Secondary gear ratio: 1
  • Chain: 415, non-sealed

Chassis & Brakes

  • Frame design: Chrome-molybdenum steel central-tube frame
  • Rear subframe: Glass fiber reinforced plastic
  • Handlebar: Tapered aluminum Ø 28/22/18 mm
  • Front brake: Disc brake
  • Rear brake: Disc brake
  • Front brake disc: 160 mm
  • Rear brake disc: 160 mm

Suspension

  • Front suspension: XACT 35 WP upside-down fork, Ø 35 mm
  • Rear suspension: XACT WP mono shock
  • Front travel: 205 mm
  • Rear travel: 193 mm
  • Steering head angle: 66°
  • Fork offset: 22 mm

Wheels & Tires

  • Front wheel: 12 × 1.5"
  • Rear wheel: 10 × 1.6"
  • Front tire: 60/100
  • Rear tire: 2.75

Dimensions

  • Seat height: 682 mm
  • Wheelbase: 1028 ± 10 mm
  • Wheelbase tolerance: 10 mm
  • Ground clearance: 259 mm
FEATURES ▾

KTM SX-5E Highlights

48V Brushless Electric Motor: The outer-rotor BLDC motor delivers smooth, immediate response with strong low-end torque, creating controllable yet exciting acceleration that supports skill development and confidence.

Lithium-Ion KTM PowerPack: A modern 21 Ah traction battery provides consistent power delivery and reliable performance while supporting fast, convenient charging between riding sessions.

Fast Charging System: The integrated charger supports 80–240V input, delivering up to 900W of charging power for quick turnaround and efficient ride preparation.

Chrome-Molybdenum Steel Frame: A purpose-built central-tube chassis offers exceptional strength, controlled flex, and lightweight handling characteristics inspired by KTM’s full-size motocross platforms.

WP XACT Suspension: The 35 mm XACT WP upside-down fork and XACT WP rear mono shock provide real motocross suspension performance, helping young riders maintain control over braking bumps, jumps, and corner entries.

Hydraulic Disc Brakes: Front and rear disc brakes with 160 mm rotors deliver predictable stopping power and consistent lever feel to support developing braking technique.

Race-Inspired Ergonomics: A tapered aluminum handlebar and compact rider triangle mirror KTM’s larger SX models, helping youth riders transition naturally as their skills progress.

Purpose-Built Youth Geometry: With optimized wheel sizing, suspension travel, and steering geometry, the SX-5E is engineered for stability, agility, and easy maneuverability.
